Bollard MGP8 - 8 kW Marine Generator - 1800 rpm

MER Equipment marine generator MGP8 - 8 kW - 1800 rpm. BOLLARD™ Generators are designed and built in the USA. The expected time between overhauls on the BOLLARD™ packaged generator set is 20 to 50 thousand hours. Bollard generators feature Imron™ 2 part marine epoxy overcoats on the engine, generator, and base frame. Accessory brackets are typically powder coated, and fasteners are primarily stainless steel to protect your investment from the harsh marine environment.

Model no longer available. Please Check other models from MER
Reference: NO LONGER AVAILABLE

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

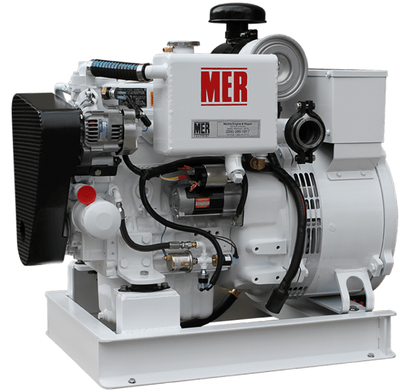

Bollard MGP8 - 8 kW Marine Generator - 1800 rpm

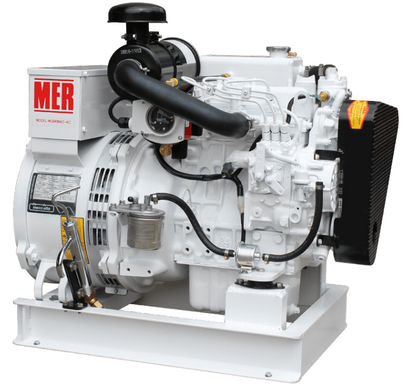

MGP8 - 8 kW Marine Generator        MER 8kw Marine Generator

Features

Unsurpassed Quality & Reliability
BOLLARD™ Generators are designed and built in the USA specifically for the rugged conditions of commercial use. The expected time between overhauls on the BOLLARD™ packaged generator set is 20 to 50 thousand hours.

High Efficiency Generators
Heavy Duty windings engineered for 80 deg. C rise of 40 deg. C ambient yield extended insulation service life, high electrical efficiency for maximum fuel economy, and superior motor starting at all voltages. Dedicated auxiliary excitation windings are standard, resulting in even higher motor starting together with 300% sustained short circuit capacity in a uniquely compact design.

Emissions
The BOLLARD™ MGP8kw Gen-Set is EPA certified Final Tier 4, CARB, EU, and MOC. It meets the lowest emissions levels available on the market today without exhaust after-treatment resulting in reduced maintenance and operating costs while preserving our clean air and water quality.

Keel Cooling, Heat Exchange, or Radiator Compatibility

Premium Marine Grade Protection
BOLLARD™ generators feature Imron™ 2 part marine epoxy overcoats on the engine, generator, and base frame. Accessory brackets are typically powder coated, and fasteners are primarily stainless steel to protect your investment from the harsh marine environment.

Heavy Duty Air Intake Filtration & Silencing
For increased performance, extended engine life, and quiet operation.

Heavy Duty Structural Steel Base Frame & Reduced Noise
For ease of installation, added structural integrity, safety, and durability. Superior vibration and noise dampening with a high mass flywheel, polyurethane vibration isolators, mass loaded & stiffened base frame, and de-noised engine.

Water Jacketed Exhaust Manifold and Expansion Tank
Provides low engine room temperatures and greatly reduces fire hazard

Controls, Gauges & Instrumentation
Standard enclosed prewired digital auto-start control panel with push button start/stop. Safety shutdowns are programmed for high water temp, low oil pressure, and over-speed. Included are LED readout of oil pressure, engine hours, DC system voltage, water temperature, engine speed in RPM, Generator Voltage and Frequency. Custom panels offer, auto-start/stop function for inverter or paralleling interface, load sharing, digital generator KW output LEDs and full function electrical distribution switchboards.

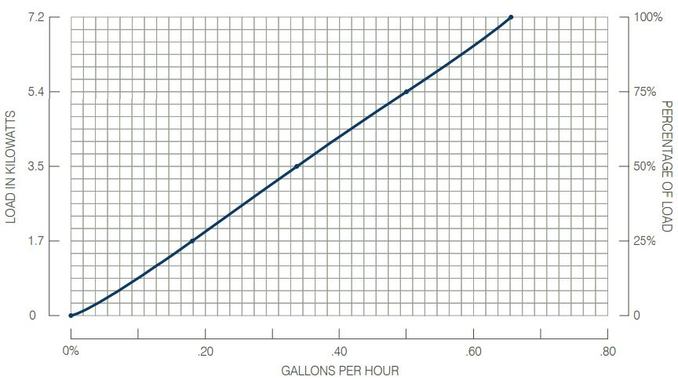

Fuel Performance

MGP8 Fuel Performance

Technical Specifications

Generator Model MGP8
Engine Model D1005
Engine Type In Line | 4 Cycle | 3 Cylinder | Diesel
Displacement - L (cu.in) 1.0 (61.08)
Bore x Stroke - mm (in) 76 (2.99) x 73.6 (2.89)
Aspiration Naturally Aspirated
Oil Sump Capacity - qts (L) 5 (5.1L)
Emission Regulation Final Tier 4
Prime - 60hz, 1800RPM (HP) 8kW (11.7)
Standby - 60hz, 1800RPM (HP) 9kW (13.31)
Motor Starting Range - HP 2.5 - 8.0 (Code G Motor @ 208 VAC)
Voltage Regulation +/-1%
Starter 12v | 1kW
Alternator 12v | 30 Amp
Operating Angle - Degrees 20 (Constant) | 30 (Intermittent)
Dry Weight - lbs 518 (Details on brochure)
Length x Width x Height - in (32 x 20 x 27.5 (see details on brochure)

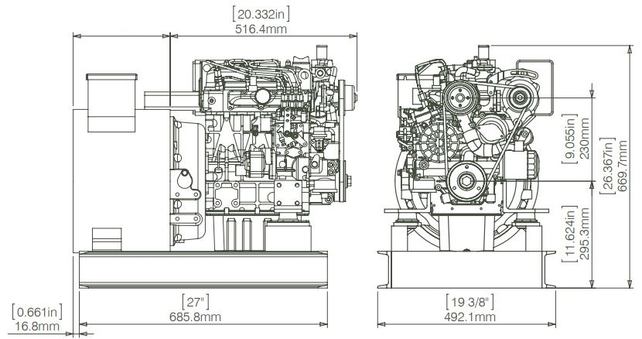

Dimensions

MER MGP8 Dimensions


MER Equipment Marine Generators
