Lone Star Marine - GX3 8mm Combo - Anchor Winches GX Series - 1500/2000w - 12/24V - 7200 lbs MAX LOAD

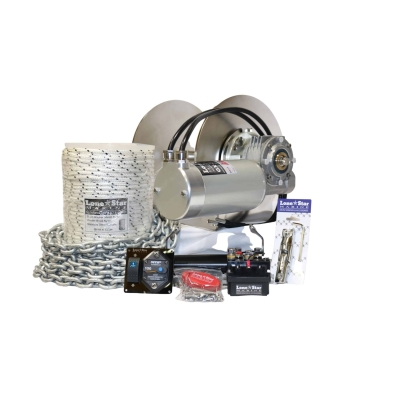

GX3 Winch Kit with RC rope & chain kit, CR195 deck roller, & medium anchor swivel
Reference: GX3 8mm Combo
$3,049.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
LONE STAR MARINE - GX3 - Anchor Winches GX Series
GX3 Winch Kit
- DB8x130 rope & chain kit (425ft of 5/16″ double braid nylon rope + 25ft 5/16″ chain)
- CR195 deck roller
- medium anchor swivel
Even more capacity in the same footprint. The GX3 features an oversized 1500W motor (250w power upgrade!) on a slightly wider 300mm frame for more capacity. Despite the wider frame, the overall width is the same as its predecessor thanks to the slimline fast-change bearing collar design. Each GX series winch features custom engineered drive components to deliver a faster speed with an amazing amount of grunt. No bushes, split pins, actuators, springs, clutches, or additional circuitry to fail. Nothing extra to buy. Just fast, reliable anchoring.Ideal for boats to 9m.
From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.
- 1500W Purpose Built Permanent Magnet Motor, 125mm width, 4 Brush Design
- Machined Solid 25mm 316SS Spool Shaft
- High Polished 6mm 316SS Plate Construction Throughout
- Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
- Machined Roller Bearing Cover (triple sealed)
- No Paint or Silicon Sealants
- No Mild steel outputs or fittings
- Fully Waterproof Machined Motor (LSM Exclusive)
- Prerigged with tinned cable leads
- Machined (not cast) Fastchange Bearing Collar
- Perfect for Deck Mounting
- Capacity 130m of 8mm Rope + 10m x 8mm chain or
- Drop/Retrieve up to 148Ft (43m) per minute
- 12 Adjustable Gear/Motor Mounting Positions
- Manual Release Feature in the event of power loss
- 3500kg Holding Power at Anchor-No need to tie off
- Huge 800kg Max Pull (empty drum)
- 120kg max recommended working load
- All 316SS and Machined 6160 Alloy Construction
- Rounded Style Transmissions for easier fitting-100% Made in Italy
- Designed and Manufactured in Australia
DIMENSIONS
FEATURES
Winch
6mm Base Plate
400 AMP Solenoid
Genuine MP Marine grade circuit breaker (made in the USA)
Anodized alloy toggle switch panel
All nuts, bolts, & washers needed for installation
Warranty information, switch panel template, installation instructions
