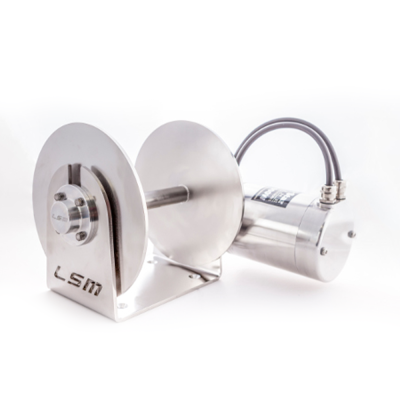

Lone Star Marine - GX2-HD - Anchor Winches GX Series - 1000/1500w - 12/24V - 7200 lbs MAX LOAD
The GX2-HD boasts jaw dropping longevity and performance and is available with 5 different rope & chain combinations to suit most vessels to 7m and a variety of anchoring styles. The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price.
Reference: GX2-HD
$2,359.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
LONE STAR MARINE - GX2-HD - Anchor Winches GX Series
Created in 2020 primarily for the North American Market, the new GX2-HD is an even more robust version of the GX2 & suited to boats of 21-30ft (6.5-9m) or more. The GX2-HD has upgraded main shaft, bearings, bearing hubs, and transmission of the mighty GX3 but in the smaller footprint of the GX2. Pulling power? We’ve got you covered. Longevity? Well there has never been a 250mm drum winch like it! If you simply do not have the room for the GX3, the GX2-HD combined with the HSC5x180 or HSC6x120 rope & chain kit will still give you plenty of high breaking strain rode length combined with the high holding, pulling power, and static load rating of a GX3.
The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation.
From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.
- 1000W Purpose Built Permanent Magnet Motor, 4 Brush Design
- IP68 (Fully Waterproof)
- Machined Solid 30mm 316SS Spool Shaft
- High Polished 6mm 316SS Plate Construction Throughout
- Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
- Machined Roller Bearing Cover (triple sealed)
- No Paint or Silicon Sealants
- No Mild steel outputs or fittings
- Fully Waterproof Machined Motor (LSM Exclusive)
- Pre-rigged with tinned cable leads for easier fitting
- Machined (not cast) Fast change Collar
- Perfect for Deck Mounting
- Holds 90m of 8mm Rope + 7m x 8mm chain
- Larger Capacity Dyneema Kits are Available
- Drop/Retrieve up to 156Ft (46m) per minute
- 12 Adjustable Gear/Motor Mounting Positions
- Manual Release Feature in the event of power loss
- 3600kg Holding Power at Anchor-No need to tie off
- Huge 1500kg Max Pull (empty drum)
- 110kg max recommended working load
- All 316SS and Machined 6160 Alloy Construction
- Rounded Style Transmissions for easier fitting-Made in Italy
- Designed and Manufactured in Australia
PRODUCT DETAILS
| POWER SUPPLY (DC) | 12V / 24V |
| MOTOR (Watts) | 1000w / 1500w |
| DRUM SIZE | 250mm |
| SOLID SHAFT SIZE | 30mm |
| GEARSET SIZE | 98mm |
| MAX DROP - RETRIEVAL SPEED | 46m/ 156 ft. p/m |
| MAX LOAD | 3.6T (7200 lbs) |
| WORK LOAD | 110kg (242 lbs) |
| ROPE CAPACITY | 120mm x 6mm Hi Spec Rope, 5m Topshot |
| CHAIN CAPACITY | 7mm x 8mm SL |
| BOAT SIZE | 6-9m |
| WARRANTY | 5+ Life Warranty |
DIMENSIONS
FEATURES
Winch
6mm Base Plate
400 AMP Solenoid
Genuine MP Marine grade circuit breaker (made in the USA)
Anodized alloy toggle switch panel
All nuts, bolts, & washers needed for installation
Warranty information, switch panel template, installation instructions
