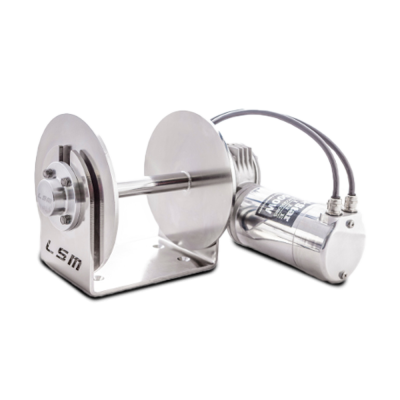

Lone Star Marine - GX1 - Anchor Winches GX Series - 600W - 12V - 6000 Lbs MAX LOAD

The GX1 is the fastest and most powerful 200mm drum anchor winch on the market today. Thanks to the well oversized gearing (4 times the surface area of gearing in other 200mm drum winches) and 600W motor this micro-unit can easily be fitted to boats to 6m for saltwater use and much larger for freshwater applications.

LONE STAR MARINE LOGO

Reference: GX1
$1,639.00

Free US Shipping on This Item!
International Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

LONE STAR MARINE - GX1 - Anchor Winches GX Series

LONE STAR MARINE - MAIN 2The GX1 is the strongest, fastest, winch of its size on the market today. They have been designed to fit into the smallest of anchor wells and are ideal for anglers in craft up to 6m (20ft) when used in saltwater, and even larger boats for placid water use. Each GX series winch features custom engineered drive components to deliver a faster speed with an amazing amount of grunt. No bushes, split pins, actuators, springs, clutches, or additional circuitry to fail. Nothing extra to buy. Just fast, reliable anchoring.

From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.

  • 600W Purpose Built Permanent Magnet Motor, 4 Brush Design
  • Machined Solid 316SS Spool Shaft
  • High Polished 6mm 316SS Plate Construction
  • Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
  • Machined Roller Bearing Cover (triple sealed)
  • No Paint or Silicon Sealants
  • No Mild steel outputs or fittings
  • Fully Waterproof Machined Motor (LSM Exclusive)
  • Prerigged with Tinned Cable Leads for Easier fitting
  • Machined (not cast) Fastchange Collar
  • Perfect for Deck Mounting
  • Holds 60m of 6mm Rope + 8m x8mm topshot & 7m of 6mm chain
  • Drop/Retrieve up to 139Ft (39m) per minute
  • 12 Adjustable Gear/Motor Mounting Positions
  • Manual Release Feature in the event of power loss
  • 2800kg Holding Power at Anchor-No need to tie off
  • Huge 300kg Max Pull (empty drum)
  • 100kg max recommended working load
  • All 316SS and Machined 6160 Alloy Construction
  • Rounded Style Transmissions for easier fitting-Made in Italy
  • Designed and Manufactured in Australia
  • Holds 60m x 6mm rope + 8m x 8mm topshot & 7m x 6mm SL Chain
  • Larger Capacity Dyneema Kits are available

PRODUCT DETAILS

POWER SUPPLY (DC) 12V
MOTOR (Watts) 600w
DRUM SIZE 200mm
SOLID SHAFT SIZE 24mm
GEARSET SIZE 88mm
MAX DROP - RETRIEVAL SPEED 39m/ 126 ft. p/m
MAX LOAD 3T (6000 lbs)
WORK LOAD 110kg (242 lbs)
ROPE CAPACITY 60mm x 6mm + 5m topshot
CHAIN CAPACITY 7mm x 6mm SL
BOAT SIZE 4-6m
WARRANTY 5+ Life Warranty

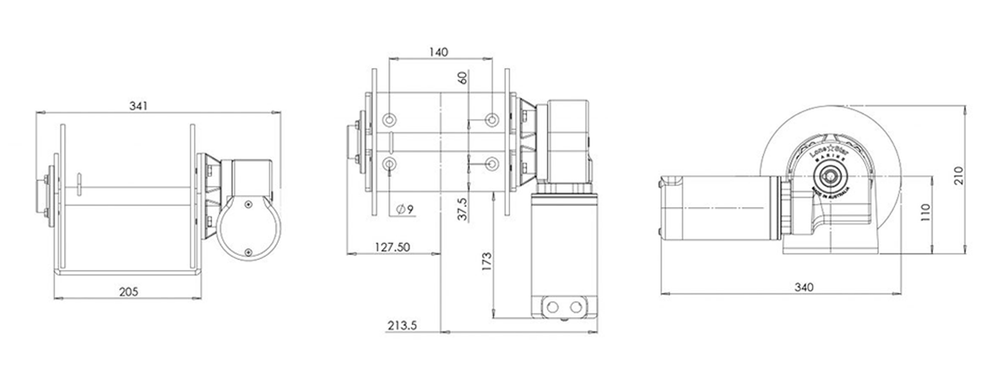

DIMENSIONS

LONE STAR MARINE - dimension

FEATURES

Winch

6mm Base Plate

400 AMP Solenoid

Genuine MP Marine grade circuit breaker (made in the USA)

Anodized alloy toggle switch panel

All nuts, bolts, & washers needed for installation

Warranty information, switch panel template, installation instructions
