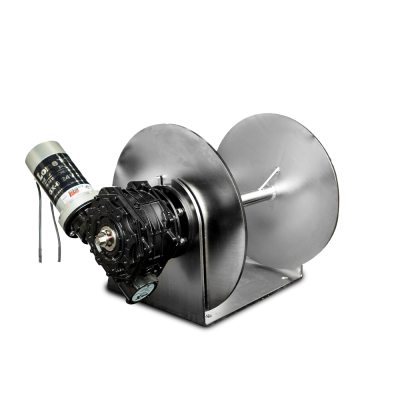

Lone Star Marine - GX6 Jumbo - Anchor Winches GX Series - 2800w - 24V - 22000 lbs MAX LOAD

LONE STAR MARINE - GX6 - Anchor Winches GX Series

The GX6 is a large unit, boasting a 550mm drum and massive single-stage gearbox for a lifetime of faultless anchoring. The GX6 is the answer for commercial fishermen and large pleasure craft to 80ft. This model has been created for XHD loads and structural integrity with a 55mm solid machined shaft, 10mm frame, and 35mm solid frame stiffener. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 20m+.

• 2800W (24v) Motor
• Perfect for wet wells and deck mounts
• Boats to 20m+
• Fast Drop/Retrieval Rating
• Sealed IP68 Motor and Oversized Gearbox
• Manufactured in Australia

From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon-free, glue-free, paint-free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All are backed by our famous 5 + Life Warranty.

• Largest Non-Custom Electric Drum Winch in the World
• 2800 w (24 v)  Purpose Built Permanent Magnet Motor, 4 Brush Design
• IP68 (Fully Waterproof)
• Extra Heavy Duty Structural Design
• Machined Solid 55 mm 316 SS Spool Shaft
• High Polished 10 mm 316 SS Cradle Construction
• 35mm Solid Frame Stiffener
• Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
• Machined Roller Bearing Cover (triple sealed)
• No Paint or Silicon Sealants
• No Mild steel outputs or fittings
• Fully Waterproof Machined Motor (LSM Exclusive)
• Pre-rigged with tinned cable leads
• Machined (not cast) Fastchange Bearing Collar
• Perfect for Deck Mounting
• Capacity 500′ of 9/16″ Rope + 40′ of 1/2″ SL chain
• Drop/Retrieve up to 170 Ft (50 m) per minute
• 8 Adjustable Gear/Motor Mounting Positions
• Manual Release Feature in the event of power loss
• 11000 kg Holding Power at Anchor-No need to tie off
• Massive 3.5 T (7700 lb) Max Pull (empty drum)
• 220 kg (480 lb) max recommended working load
• All 316 SS and Machined 6160 Alloy Construction
• Italian Made Transmission-Marine Grade Outputs

PRODUCT DETAILS

FEATURES

Winch

6mm Base Plate

400 AMP Solenoid

Genuine MP Marine grade circuit breaker (made in the USA)

Anodized alloy toggle switch panel

All nuts, bolts, & washers needed for installation

Warranty information, switch panel template, installation instructions
