Lone Star Marine - GX5 Charter King - Anchor Winches GX Series - 1500/2000w - 12/24V - 14000 lbs MAX LOAD
The Versatile GX5 can be loaded with a variety of lines to accommodate most depths. The GX™ series has become the new workhorse & standard in perfectly engineered anchoring systems at the right price. It features all Australian 316 stainless and machined & anodized 6061 T-6 aluminum construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all-new emergency release as standard on all models. Motors are once again custom-manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation.
Reference: GX5 Volts 12v
$4,899.00
Available for local pickup at our Miami or Fort Lauderdale location
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

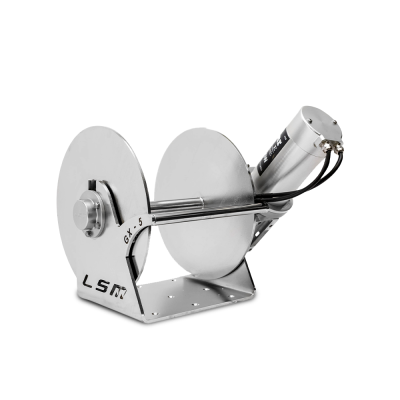

LONE STAR MARINE - GX5 - Anchor Winches GX Series
- Huge 2300W (12V) or 2800W (24v) Motor
- Perfect for wet wells and deck mounts
- Boats to 50ft
- Fast Drop/Retrieval Rating
- Sealed IP68 Motor and Oversized Gearbox
- Manufactured in Australia
From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.
- 2300w (12v) or 2800w (24v) Purpose Built Permanent Magnet Motor, 4 Brush Design
- IP68 (Fully Waterproof)
- Extra Heavy Duty Structural Design
- Machined Solid 37mm 316SS Spool Shaft
- High Polished 8mm 316SS Cradle Construction
- 1 inch Solid Frame Stiffener
- Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
- Machined Roller Bearing Cover (triple sealed)
- No Paint or Silicon Sealants
- No Mild steel outputs or fittings
- Fully Waterproof Machined Motor (LSM Exclusive)
- Prerigged with tinned cable leads
- Machined (not cast) Fastchange Bearing Collar
- Perfect for Deck Mounting
- Capacity 450ft of 1/2 inch Rope + 40ft x 3/8inch SL chain
- Drop/Retrieve up to 129Ft (40m) per minute
- 12 Adjustable Gear/Motor Mounting Positions
- Manual Release Feature in the event of power loss
- 15000lb Holding Power at Anchor-No need to tie off
- Massive 2.5T Max Pull (empty drum)
- 300lb max recommended working load
- All 316SS and Machined 6160 Alloy Construction
- Italian Made Transmission-Marine Grade Outputs
PRODUCT DETAILS
| POWER SUPPLY (DC) | 12V / 24V |
| MOTOR (Watts) | 2300w / 2800w |
| DRUM SIZE | 420mm |
| SOLID SHAFT SIZE | 37mm |
| GEARSET SIZE | 150mm |
| MAX DROP - RETRIEVAL SPEED | 12v (48m/ 156 ft. p/m) | 24v (48m/ 156ft. p/m) |
| MAX LOAD | 7T (14000 lbs) |
| WORK LOAD | 150kg (330 lbs) |
| ROPE CAPACITY | 140mm x 12mm |
| CHAIN CAPACITY | 12mm x 10mm SL |
| BOAT SIZE | 10-15m+ |
| WARRANTY | 5+ Life Warranty |

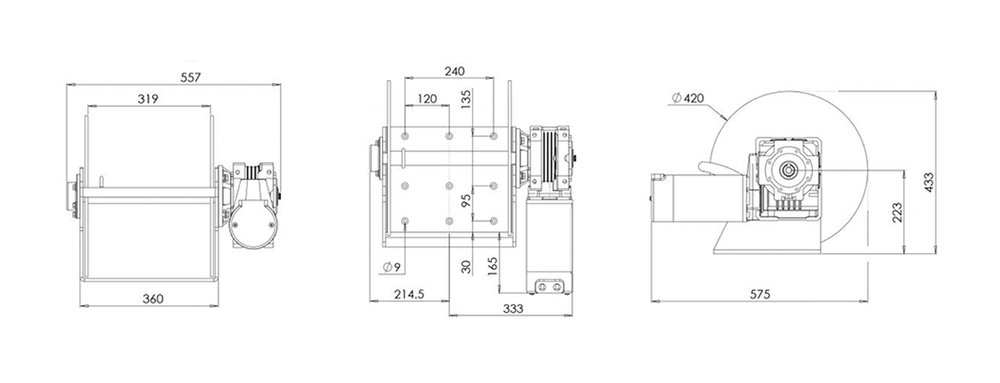

DIMENSIONS
FEATURES
Winch
6mm Base Plate
400 AMP Solenoid
Genuine MP Marine grade circuit breaker (made in the USA)
Black 316 stainless steel switch panel
All nuts, bolts, & washers needed for installation
Warranty information, switch panel template, installation instructions
