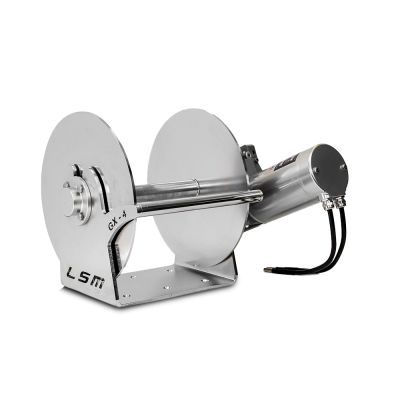

Lone Star Marine - GX4 - Anchor Winches GX Series - 1500/2000w - 12/24V - 10400 lbs MAX LOAD

LONE STAR MARINE - GX4 - Anchor Winches GX Series

Even more capacity in the same footprint. The GX4 features an oversized 1500W/ 2000W motor on a slightly wider 350mm frame for more capacity. Despite the wider frame, the overall width is the same as its predecessor thanks to the slimline fast-change bearing collar design. Each GX series winch features custom-engineered drive components to deliver a faster speed with an amazing amount of grunt. No bushes, split pins, actuators, springs, clutches, or additional circuitry to fail. Nothing extra to buy. Just fast, reliable anchoring.Ideal for boats to 12m.

Performance, reliability & raw power in a hefty frame, the GX4 is the answer for large capacity trailer boat & commercial fishermen. This model has been created for XHD loads and structural integrity with a 37mm solid machined shaft, 8mm frame, and 25mm solid frame stiffener. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 12m for salt-water use and much larger for freshwater applications.

• Huge 1500W (12V) or 2000W (24v) Motor
• Perfect for wet wells and deck mounts
• Boats to 12m (40ft)
• Fast Drop/Retrieval Rating
• Sealed IP68 Motor and Oversized Gearbox
• Manufactured in Australia

From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.

• 1500W Purpose Built Permanent Magnet Motor, 125mm width, 4 Brush Design
• Machined Solid 37mm 316SS Spool Shaft
• High Polished 8mm 316SS Cradle Construction
• 25mm Solid Frame Stiffener
• Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
• Machined Roller Bearing Cover (triple sealed)
• No Paint or Silicon Sealants
• No Mild steel outputs or fittings
• Fully Waterproof Machined Motor (LSM Exclusive)
• Prerigged with tinned cable leads
• Machined (not cast) Fastchange Bearing Collar
• Perfect for Deck Mounting
• Capacity 120m of 10mm Rope or
• 80m of 12mm Rope + 12m x 8mm SL chain
• Drop/Retrieve up to 146Ft (48m) per minute
• 12 Adjustable Gear/Motor Mounting Positions
• Manual Release Feature in the event of power loss
• 5200kg Holding Power at Anchor-No need to tie off
• Huge 1.3Tkg Max Pull (empty drum)
• 120kg max recommended working load
• All 316SS and Machined 6160 Alloy Construction
• Italian Made Transmission-Marine Grade Outputs
• Designed and Manufactured in Australia
• Each Kit Includes the Following as Standard

PRODUCT DETAILS

FEATURES

Winch

6mm Base Plate

400 AMP Solenoid

Genuine MP Marine grade circuit breaker (made in the USA)

Anodized alloy toggle switch panel

All nuts, bolts, & washers needed for installation

Warranty information, switch panel template, installation instructions
