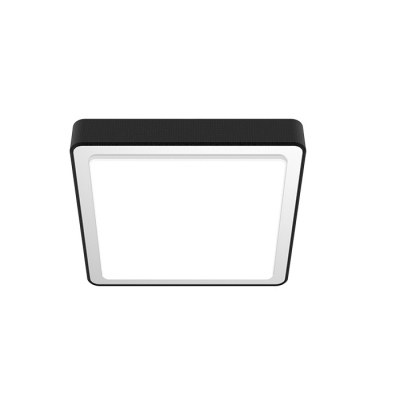

Glamox AL60-SQ
The new Glamox AL60 is a robust designed family of luminaires with an elegant expression – specially designed for LED. The family consists of berth light, mirror light, circular light, two indoo
Reference: GLX-AL60-SQ
Glamox / Marine lighting
Glamox AL60-SQ
The new Glamox AL60 is a robust designed family of luminaires with an elegant expression – specially designed for LED. The family consists of berth light, mirror light, circular light, two indoor square lights and two outdoor square lights. The luminaires fit in applications like cabins, corri
The new Glamox AL60 is a robust designed family of luminaires with an elegant expression – specially designed for LED. The family consists of berth light, mirror light, circular light, two indoor square lights and two outdoor square lights. The luminaires fit in applications like cabins, corridors, lounges and entrance areas. The AL60 family is designed and approved for marine demands. Glamox states quality in
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Application | For crew and public areas as cabins, corridors, stair cases, lounges and shopping areas. |
| Design | According to marine requirements |
| Mounting | Surface or wall mounting, fixed with 4 screws. Backside has 3 x M20 knock outs with grommets for fixed cable installation cable. Sides have 3 M20 knock outs with Quick seal grommets that takes cables from 7 to 11 mm in d |
| Dimensions | AL60-SQ 290 => 290 x 290 mm AL60-SQ 340 => 340 x 340 mm |
| Light Source | Colour tolerances: MacAdams 3 Colour rendering: CRI > 8 Color temperature 3000K or 4000K on request Lifetime: Minimum 50 000 hour, L70 at max Ta=45°C or 50°C SQ290 LED 1100 lumen out SQ340 LED 2000 lumen out For precise |
| Housing | The housing is made in solid die-cast aluminium IP54and painted in polyester powder paint in colour grey (RAL 9006), White (RAL 9016) or Black (RAL 9005). The diffuser is in impact resistant opal polycarbonate (PC). Deco |
| Electrical specification | With integrated HF driver that also can be phase cut dimmed. |
| Solid classification | IK10 impact class and IP54 ingress protection. |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
