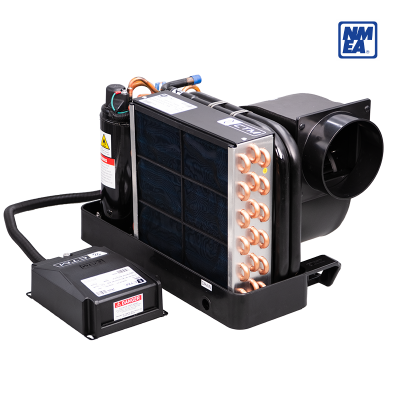

Aire acondicionado marino CTM CT-16HN de 16.000 BTU - 230 V - 60 Hz NMEA 2000

Aire acondicionado marino CTM CT-16HN de 16.000 BTU - 230 V - 60 Hz NMEA 2000 - Ventilador turbo

16 000 BTU de refrigeración potente, silenciosa y eficiente. 230 V. Las serpentinas de circulación de titanio, los pernos de acero inoxidable y la bandeja estructural de acero inoxidable con bandeja de ABS garantizan un rendimiento duradero y resistente a la corrosión incluso en los entornos marinos más exigentes. 2 años de garantía*. Número de patente: US 12,030,610 B2.

El silencioso, potente y eficiente CTM es una excelente opción para nuevas instalaciones, pero también funciona como un reemplazo perfecto para todas las principales marcas de aire acondicionado marino, incluidas Dometic, Webasto, Cruisair, Marine Air y Mermaid Air. El CTM es totalmente compatible con todos los controles/termostatos y cables de Dometic, Cruisair, Marine Air y Micro Air, lo que facilita enormemente el reemplazo de estos sistemas.

CTM ha aprovechado casi una década de experiencia como uno de los principales minoristas de aire acondicionado marino en los EE. UU., y combinando esto con la comprensión de los deseos y necesidades de los clientes de aire acondicionado marino, así como de las áreas en las que otras marcas importantes podrían mejorar, CTM ha creado un aire acondicionado marino autónomo que eleva el estándar de calidad y rendimiento.

Gracias a su integración con Garmin Empirbus y Onehelm, Raymarine Yachtsense* permite un control integrado NMEA 2000 completo desde pantallas multifunción (MFD) y otros dispositivos conectados en red. Esto posibilitará un control fluido de múltiples unidades de climatización sin necesidad de pantallas adicionales, aprovechando al máximo las pantallas multifunción (MFD) y los sistemas de control digital existentes en la embarcación.

La nueva pantalla táctil CTM Easycool de 3,5 pulgadas incorpora conectividad Bluetooth y Wi-Fi, lo que permite a los usuarios monitorizar y controlar de forma remota los sistemas de climatización mediante nuestras aplicaciones complementarias para Apple y Android. Entre sus características principales se incluyen el control de los modos de funcionamiento, la potencia, la velocidad del ventilador, los ajustes de funcionamiento y la monitorización en tiempo real de la temperatura y la humedad de entrada, mejorando así el confort y la experiencia del usuario tanto a bordo como de forma remota.

Substitute the following Part Numbers

Si bien es ligero y compacto, el CTM CT incluye serpentines de circulación de titanio, un turbocompresor giratorio de alta velocidad (que gira menos de 250 grados), pernos de acero inoxidable y una bandeja estructural de acero inoxidable con una bandeja de plástico ABS para garantizar un rendimiento duradero y resistente a la corrosión incluso en los entornos marinos más exigentes.

Todas las placas de control, sensores de temperatura y cables de CTM se fabrican en Estados Unidos bajo estrictos estándares de calidad. Cada unidad CTM incluye una garantía estándar de la industria de 2 años*, un servicio de atención al cliente experto y atento, y envío terrestre gratuito dentro de Estados Unidos.

Como distribuidores de sistemas de aire acondicionado marinos, y también como navegantes, sabemos lo que buscan los navegantes en un sistema de aire acondicionado marino, y esto es precisamente lo que ofrece la línea CTM.

Specifications:

Capacity

16,000 BTU

Voltage

208-230 V

Cycle / Phase

60 Hz / 1Ph

Current Consumption Input

6.6 A

Fuse

25 A

RLA / LRA

4.8 A / 25 A

Refrigerant Type

R410A

Refrigerant Charge

14.1 oz / 400 gr

Blower Airflow

508 CFM

Blower Speed

1450 RPM

High Velocity Blower

Yes

Min. Supply Duct Size

6 in / 15.2 cm

Seawater In / Out

5/8" / 5/8"

Condenser Water Flow

9 GPM

Net Weight

57 lbs / 25.85 kg

Features of the CTM CT-16H

   Titanium Condenser Coil

The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.

   Compact Design

Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.

   ABS Insulated Pan

ABS is a versatile thermoplastic product that combines several compounds to offer a durable and corrosion-free material. This insulated pan is designed and made to last for years.

   Quiet

Very quiet yet powerful marine air conditioning unit, making it a great option for powerboats and sailboats.

   Turbo Blower

High-velocity rotatable turbo blower that will cool or hear faster. Blower rotates less than 250 degrees.

   Universal Board

Next generation control board is compatible with most controllers in the market, such as OEM Brands like Dometic, Cruisair, and Marine Air. Also supports the TSEP Temperature sensor. Made in USA.

   Reverse Cycle Heating

Enjoy powerful cooling from your CT Unit with the option of heating if needed. Thanks to reverse cycle, you can switch to heating when temperatures get low.

   Control and Cable Included

The CT units now come with the Elite II Control and 10ft 8-pin cable included. Since May 1 2026

Dimensions:

A - Depth	20.34 in / 51.65 cm
B - Drain Pan Width	10 in / 25.4 cm
C - Width	12 in / 30.5 cm
D - Height	13.2 in / 33.5 cm
E - Min. Duct Diameter	6 in / 15.2 cm

CTM CT Unit Cooling Efficient Design vs Competitors

Universal Control Board Layout

Compatible with Most Thermostats

Smart Touch / Easy Touch	CTM Elite II	Passport I/O	SMXir

Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXir, Passport I/O, Smart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don't have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o.

NEW 2026 CTM Unboxing & Installation Tutorial |CTM) Marine Self-Contained A/C

More information on CTM

CTM Marine Air Conditioners - All New, Superior Marine Air Conditioning

CTM Marine Air Conditioners not only improve on the efficiency and performance of other top units on the market, but are more durable, longer-lasting A/C units, designed to withstand the harshest of marine environments. CTM units are also fully compatible with controls and thermostats from major marine A/C brands, and can be easily installed yourself, making them the perfect drop-in replacements for units from other brands.

Read More

Best Marine Air Conditioners? Best Brand, Support & Warranty?

Boaters often wonder which brand makes the best marine air conditioners when looking to install a new unit.

To be honest, most marine air conditioners from all the major brands are solid and will do the job, as long as they’ve been installed correctly. However, the keyword here is most. You want to improve your odds of being satisfied with your A/C purchase by researching which company’s units have the least number of complaints… and if there is a problem, how that company handles it.

Read More

Notes if replacing a Dometic DTU16, DTG16 or ECD16 - 230V

The CTM CT-16H marine air conditioning unit works as a good replacement for the Dometic DTG16 - 230V (205162176), DTU16 - 230V (205162160), or ECD16 - 230V (207500017). There are some specs that should be taken into consideration when replacing one of the units previously mentioned.

- Because the CT-16H 230V unit comes with the Universal Control board, it will work with the controller you currently have. Supported controllers included: SMXir, Passport I/O, Smart Touch, Elite II.

- Waterline connections should be the same as the unit you are replacing, the CT-unit has a standard 5/8" water connection.

- The CT-16H 230V Unit has a 6 inch ducting ring whereas the Dometic comes with a 7 inch. It is a quick replacement as the ducting can be easily cinched down with a clamp.

- Dimensions wise this unit is very similar to the one you are replacing, so It shouldn't be a major issue. However, it is suggested you double-check in order to avoid any issues when installing.





Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed  (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
