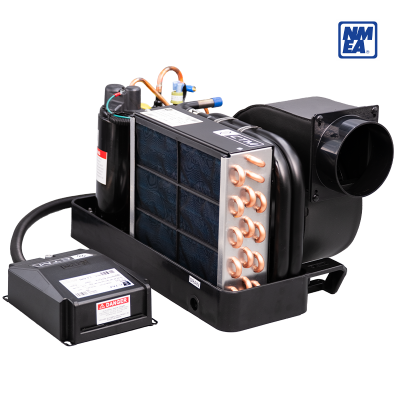

Aire Acondicionado Marino CTM CT-10HN de 10.000 BTU - 230 V - 60 Hz - NMEA 2000
Available for local pickup at our Miami or Fort Lauderdale location
Envio gratuito para envíos superiores a 99$
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
10,000 BTU de refrigeración potente, silenciosa y eficiente. 230 V. Las serpentinas de circulación de titanio, los pernos de acero inoxidable y la bandeja estructural de acero inoxidable con bandeja de ABS garantizan un rendimiento duradero y resistente a la corrosión incluso en los entornos marinos más exigentes. 2 años de garantía*. Número de patente: US 12,030,610 B2.
El silencioso, potente y eficiente CTM es una excelente opción para nuevas instalaciones, pero también funciona como un reemplazo perfecto para las principales marcas de aire acondicionado marino, incluyendo Dometic, Webasto, Cruisair, Marine Air y Mermaid Air. El CTM es totalmente compatible con todos los controles, termostatos y cables de Dometic, Cruisair, Marine Air y Micro Air, lo que facilita enormemente el reemplazo de estos sistemas.
CTM ha aprovechado casi una década de experiencia como uno de los principales minoristas de aire acondicionado marino en los EE. UU. y, combinándola con la comprensión de los deseos y necesidades de los clientes de aire acondicionado marino, así como de las áreas en las que otras marcas importantes podrían mejorar, CTM ha creado un sistema autónomo de aire acondicionado y bomba de calor marino que eleva el estándar de calidad y rendimiento.
Gracias a su integración con Garmin Empirbus y Onehelm, Raymarine Yachtsense* permite un control integrado NMEA 2000 completo desde pantallas multifunción (MFD) y otros dispositivos conectados en red. Esto posibilitará un control fluido de múltiples unidades de climatización sin necesidad de pantallas adicionales, aprovechando al máximo las pantallas multifunción (MFD) y los sistemas de control digital existentes en la embarcación.
La nueva pantalla táctil CTM Easycool de 3,5 pulgadas incorpora conectividad Bluetooth y Wi-Fi, lo que permite a los usuarios monitorizar y controlar de forma remota los sistemas de climatización mediante nuestras aplicaciones para Apple y Android. Entre sus características principales se incluyen el control de los modos de funcionamiento, la potencia, la velocidad del ventilador, los ajustes de funcionamiento y la monitorización en tiempo real de la temperatura y la humedad de entrada, mejorando así el confort y la experiencia del usuario tanto a bordo como de forma remota.
INCLUDES
PART NUMBER
Humidity / Temperature Sensor for NMEA2000 unit
40001T
NMEA 2000 Starter Kit
40020G
EASY COOL STANDARD - 3.5” - NMEA 2000 or
Easy Cool Mini - 2.4in - VIMAR BEZEL
40006A
40007A
Sustituye los siguientes números de pieza.
CTM Unit Part Number
Description
Fits OEM Part number
OEM Description
22201C
CT-10 230V 60HZ 410A
205162109
DOMETIC DTG10 230V 50/60HZ 410A
205162100
DOMETIC DTU10 230V 60HZ 410A
205161100
DOMETIC DTU10 220V 50HZ 410A
205161101
DOMETIC DTU10 220V 50HZ 410A 6MR
205162101
DOMETIC DTU10 230V 60HZ 410A 6MR
207500010
DOMETIC ECD10KZ/1-HV 410A KIT 220-240 50/60HZ
205200150
DOMETIC GVTX10 115-230V 50/60HZ
205563450
CRUISAIR STQ10C-410A 230V 60HZ
205563455
CRUISAIR STX10C-410A 230V 60HZ
205563400
MARINE AIR VTD10KZ-410A 230V 60HZ
205563401
MARINE AIR VTD10KZ-410A 6"MR 230V/60HZ
205563451
CRUISAIR STQ10C-410A 6"MR 230V 60HZ
5011397A
WEBASTO FCF PLATINUM 10,000 BTUS 230V
WBCL120002D
WEBASTO S10 BLUECOOL 10,000 BTUS 230V
MSBA11C2
MARINAIRE 11,000 BTUS 230V 60HZ
MSBA9C2
MARINAIRE 9,000 BTUS 230V 60HZ
FM9H
FLAGSHIP 9,000 BTUS 230V COOL & HEAT
FM9
FLAGSHIP 9,000 BTUS 230V COOL ONLY
Si bien es ligero y compacto, el CTM CT incluye serpentines de circulación de titanio, un turbocompresor giratorio de alta velocidad (que gira menos de 250 grados), pernos de acero inoxidable y una bandeja estructural de acero inoxidable con una bandeja de plástico ABS para garantizar un rendimiento duradero y resistente a la corrosión incluso en los entornos marinos más exigentes.
Todas las placas de control, sensores de temperatura y cables de CTM se fabrican en Estados Unidos bajo estrictos estándares de calidad. Cada unidad CTM incluye una garantía estándar de la industria de 2 años*, un servicio de atención al cliente experto y atento, y envío terrestre gratuito dentro de Estados Unidos.
Como distribuidores de sistemas de aire acondicionado marinos, y también como navegantes, sabemos lo que buscan los navegantes en un sistema de aire acondicionado marino, y esto es precisamente lo que ofrece la línea CTM.
CTM CT Unit vs Dometic DTG and Webasto FCF Platinum
Specifications:
Capacity
10,000 BTU
Voltage
208-240 V
Cycle / Phase
60 Hz / 1Ph
Current Consumption Input
3.9 A
Fuse
15 A
RLA / LRA
3.2 A / 16 A
Refrigerant Type
R410A
Refrigerant Charge
12.4 oz / 350 gr
Blower Airflow
380 CFM
Blower Speed
1200 RPM
High Velocity Blower
Yes
Min. Supply Duct Size
5 in / 12.7 cm
Seawater In / Out
5/8" / 5/8"
Condenser Water Flow
5 GPM
Net Weight
48 lbs / 21.7 kg
Features of the CTM CT-10
Titanium Condenser Coil
The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.
Compact Design
Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.
ABS Insulated Pan
ABS is a versatile thermoplastic product that combines several compounds to offer a durable and corrosion-free material. This insulated pan is designed and made to last for years.
Quiet
Very quiet yet powerful marine air conditioning unit, making it a great option for powerboats and sailboats.
Turbo Blower
High-velocity rotatable turbo blower that will cool or hear faster. Blower rotates less than 250 degrees.
Universal Board
Next generation control board is compatible with most controllers in the market, such as OEM Brands like Dometic, Cruisair, and Marine Air. Also supports the TSEP Temperature sensor. Made in USA.
Reverse Cycle Heating
Enjoy powerful cooling from your CT Unit with the option of heating if needed. Thanks to reverse cycle, you can switch to heating when temperatures get low.
Control and Cable Included
The CT units now come with the Elite II Control and 10ft 8-pin cable included. Since May 1 2026
Dimensions:
A - Depth
20.34 in / 51.65 cm
B - Drain Pan Width
10 in / 25.4 cm
C - Width
11.75 in / 29.8 cm
D - Height
12.4 in / 31.5 cm
E - Min. Duct Diameter
5 in / 12.7 cm
CTM CT Unit Cooling Efficient Design vs Competitors
Como la unidad CTM viene con la placa de control universal, debería funcionar con el controlador que tiene actualmente. Los controladores compatibles incluyen SMXir, Passport I/O, Smart Touch y Elite II. Sin embargo, hay algunas versiones antiguas de los controladores SMXir y Passport I/O que no tienen el firmware para funcionar con la nueva placa universal. Una versión más reciente de SMXir o Passport I/O.
CTM Marine Air Conditioners - All New, Superior Marine Air Conditioning
CTM Marine Air Conditioners not only improve on the efficiency and performance of other top units on the market, but are more durable, longer-lasting A/C units, designed to withstand the harshest of marine environments. CTM units are also fully compatible with controls and thermostats from major marine A/C brands, and can be easily installed yourself, making them the perfect drop-in replacements for units from other brands.
Best Marine Air Conditioners? Best Brand, Support & Warranty?
Boaters often wonder which brand makes the best marine air conditioners when looking to install a new unit.
To be honest, most marine air conditioners from all the major brands are solid and will do the job, as long as they’ve been installed correctly. However, the keyword here is most. You want to improve your odds of being satisfied with your A/C purchase by researching which company’s units have the least number of complaints… and if there is a problem, how that company handles it.
Notes if replacing a Dometic DTU10, DTG10 or ECD10 - 230V
The CTM CT-10H marine air conditioning and heat pump unit works as a good replacement for the Dometic DTG10 - 230V (205162109), DTU10 - 230V (205162100), or ECD10 - 230V (207500010). There are some specs that should be taken into consideration when replacing one of the units previously mentioned.
- Because the CT-10H unit comes with the Universal Control board, it will work with the controller you currently have. Supported controllers included: SMXir, Passport I/O, Smart Touch, Elite II.
- Waterline connections should be the same as the unit you are replacing, the CT-unit has a standard 5/8" water connection.
- The CT-10H Unit has a 5-inch ducting ring whereas the Dometic comes with a 6 inch. It is a quick replacement as the ducting can be easily cinched down with a clamp.
- Dimensions wise this unit is very similar to the one you are replacing, so It shouldn't be a major issue. However, it is suggested you double-check in order to avoid any issues when installing.
Warranty
The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.
In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.
For more detailed information please download the Manual and refer to page 17.
