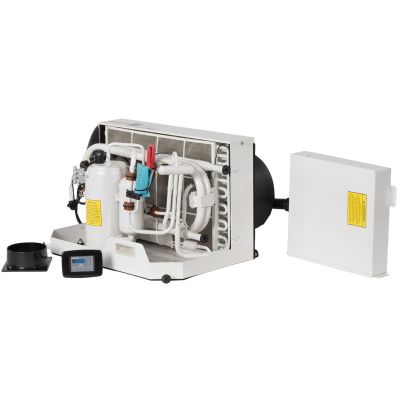

Webasto FCF Platinum 20,000 BTU Marine Air Conditioner - 230V

Webasto FCF Platinum 20000 BTU Marine Air Conditioner - 230V, 50/60 Hz - R410A - 20,000 BTU's. The latest development in Webasto’s line of marine A/Cs, the FCF Platinum series features improved design and higher BTU/h rating. Powerful, quiet, and efficient cooling. Digital display & cable included. Reverse cycle heating. Part Number: 5011402A. *2-Year Warranty

NO LONGER AVAILABLE

Reference: 5011402A
Reg Price: $2,736.98
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details

Freight Shipping on This Item*
Freight Shipping Calculator
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Webasto FCF Platinum 20000 BTU Marine Air Conditioner - 20,000 BTUs, 230V
Webasto FCF Platinum 20000
The all-new FCF Platinum series is the latest development in Webasto’s line of marine comfort solutions. The FCF Platinum features improved design, offering a higher BTU/h rating across a variety of ambient scenarios, while providing unmatched product reliability and a two-year warranty. Powerful, quiet and efficient.

New FCFP Platinum Series Features

  • Long and slim footprint to allow for easy replacement of existing units
  • Engineered for better performance with a higher BTU/h rating across a variety of ambient scenarios
  • Reverse cycle heating function
  • Digital display, controller and cable comes standard
  • 2-year warranty with unmatched product reliability
  • Marine-grade stainless steel frame for durability and longevity
  • Proprietary compressor - well balanced and quieter than ever before
  • Low cost replacement parts

What's Included?

  • 5" ducting collar,
  • High-velocity 360° rotatable blower
  • Remote mount electrical box
  • Digital control with bezel
  • Air filter
  • R410A refrigerant
  • NO REMOTE CONTROL (OPTIONAL)

Installation Notes If Replacing a Dometic Unit

The Webasto FCF Platinum 20000 is a good replacement option for Dometic, but there are some differences that should be noted when installing the Webasto:

  • The Webasto uses 4 and 5 inch ducting whereas the Dometic uses 5 and 6 inch. An easy replacement as the flex ducting can be cinched down in size easily.
  • Condenser sizes are different. A boat having Dometic on it would be using 5/8” water lines. When replacing with a Webasto FCF unit, a provided 5/8” to 3/4” adapter (Included with the unit) is required with a short length of 3/4” water hose to connect to the larger, superior Webasto condenser. Also an easy task, but needs mentioning.
  • The controller is not interchangeable meaning the cable and controller must be replaced. Both the cable and controller are included with every FCF platinum unit.

There are very slight differences in the dimensions to take into account when considering installation location, but this is rarely a problem.

Technical Specifications and Dimensions of the Webasto 5011402A

Part Number 5011402A
Cooling capacity (BTU / h) 20,000
Heating Capacity (BTU / h) 20,000
Voltage (V) 230
Frequency (Hz) 50/60
Rated Current (A) 10.5 / 7.4
Comp. LRA (A) 44
Refrigerant Charge (Lbs) 1.87
Seawater Inlet 3/4" - 5/8" Adapter included with the unit
Min. Condenser Water Flow (Gal/min) 5.02
Blower Connection Size (mm/in) 125/5
Dimensions unit (L x D x H) (mm / inch) 529 x 595 x 386
20.8 x 23.4 x 15
Weight (kg / lbs) 56.5 / 124

Dimensions

Webasto FCFP Platinum Series Air Conditioning Dimensions


Webasto

Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
