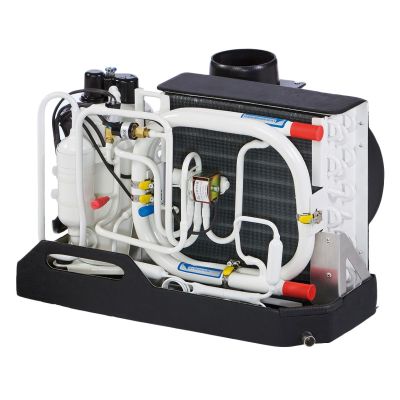

Webasto S20 BlueCool S Series - 230V - 20,000 BTU Marine Air Conditioner

Webasto S20 BlueCool S Series Self-Contained Marine Air Conditioner - 230V. Quiet, powerful and highly-efficient marine a/c unit. 270 degree rotatable blower. Updated to be fully 50 / 60 Hz compatible - suitable for worldwide usage. All units are epoxy-painted and come with a stainless steel drain pan for durable corrosion protection. R410 refrigerant. Reverse cycle heating function. Display included.*2-Year Warranty

Reference: WBCL120005E
Regular Price: $2,891.00
Black Friday Price: $2,457.35
  • 15% OFF
Discount automatically applied to your cart. From Black Friday through Cyber Monday!

Freight Shipping on This Item*
Freight Shipping Calculator
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

Webasto S20 BlueCool S Series - 230V - Self Contained Unit - R410A


Webasto S20 BlueCool S Series Unit


Webasto S20 BlueCool S Series self-contained air conditioners are suitable for boats with up to three cabins. The range is designed in a compact way. For a solid and highly functional base, they are mounted on extra-deep, thermally insulated, stainless steel trays. All units are expoxy-painted for durable corrosion protection. Highly efficient compressors allow extremely low power consumption. Additionally, a multi-point injection evaporator offers higher unit efficiency. The installation of a self-contained unit is very simple. Each cabin has its own self-contained unit providing cool air to the cabin. Generated heat is transferred to the sea via the sea water circuit. The control unit is located in the same cabin as the air conditioner

The S-Series offer a unique feature with the BlueCool Expert Tool that is connected via a single USB cable to a PC. On site servicing and remote assistance are now a child’s play.

Part Number: WBCL120005E
Replaces Part Number: WBCL120005D

Webasto BlueCool S20 Features

  • Up to 15% increased efficiency
  • Continuous operation even under tropical conditions
  • Overall size is reduced up to 20%
  • Suitable for worldwide usage
  • New electronics with USB diagnosis
  • Quiet operation & robust design
  • Soft start devices available as an option

Webasto Self Contained Unit Features

  • Stand alone unit
  • Heating function via reverse cycle integrated
  • Extremely compact
  • All components on one tray
  • Seven sizes available
  • Lowest power consumption

What's Included?

  • 5" ducting collar,
  • High-velocity 270° rotatable blower
  • Remote mount electrical box
  • MyTouch digital control with bezel
  • Air filter
  • R410A refrigerant

MyTouch Control Display Included

Webasto MyTouch Control Display

  • The BlueCool MyTouch display is the new standard display for all BlueCool A/C Series:
  • Full color, high resolution, interactive 2,4” touch screen
  • Multiple customization options available (design, colors, language, photos, etc.)
  • Protected: full access to system configuration parameters
  • Compatible with Vimar Eikon, Eikon EVO, Plana, Bticino Axolute

Technical Specifications and Dimensions for WBCL120005E

Cooling capacity (BTU / h)

20,000

Cooling capacity (kW)

5.9

Heating via reverse cycle integrated

Yes

Voltage (V)

230

Frequency (Hz)

50/60

Current draw running (230 V) (A) 50 Hz

5.9 - 8.9

Current draw Start max. peak (230 V) (A) 50 Hz

60

Air flow (free blowing) (230 V) (m3 / h, cfm)

625 / 368

Sea water connection (mm / inch)

19 / 3/4

Minimum sea water flow at 50 Hz (230 V) (l / min.)

17

Minimum sea water flow at 60 Hz (230 V) (l / min.)

20

Recommended seawater pump

WB500/WB500G

Dimensions unit (L x D x H) (mm / inch)

590 x 340 x 370
23.2 x 13.4 x 14.6

Ø Blower connection (mm / inch)

125/5

Weight core unit (kg / lbs)

34 / 75




Webasto BlueCool S Series Dimension

BlueCool S Series Video


Webasto

About Webasto - Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
