Raymarine Ray91 Modular VHF Radio with AIS Receiver Only - E70493 - Wired Handset, Passive Speaker, and Cable.



The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Position Tracking

Use Ray91’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterway

Loudhailer

Ray91’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray91’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

Communications Powerhouse

Ray91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Key Features

• Black box, multi-station capable VHF radio
• NEW - Wireless handset and active speaker available
• Wired handset and passive speaker included
• Expandable to 2 handsets
• Built-in loudhailer and fog signal generator
• Optional external GPS
• Simple NMEA2000 and NMEA0183 Networking

The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.

What's In the Box?

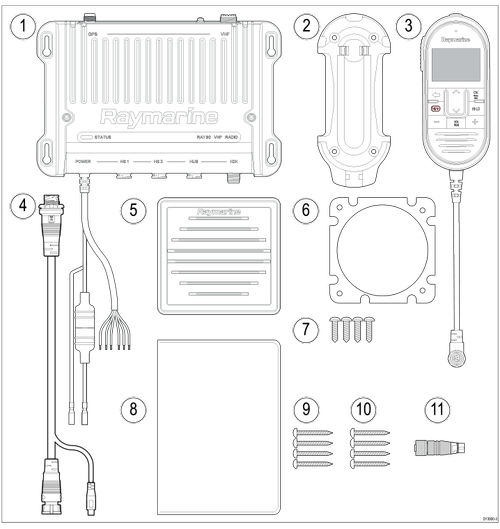

1	Ray90 / Ray91 VHF DSC Radio (including fitted power and data cable)
2	Raymic handset cradle
3	Raymic handset
4	Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)
5	Passive speaker
6	Passive speaker mounting gasket
7	Passive speaker mounting screws x 4
8	Documentation
9	VHF radio mounting screws x 4
10	Handset cradle mounting screws x 4
11	DeviceNet to SeaTalkng® adaptor

Specifications and Dimensions

Model	Wired Unit	Wireless Hub	Wireless Handset	Charging Holster
General Specifications
Size (HxWxD) Main Unit	Height = 63mm (2.48 in)  Width - 235mm (9.25 in) max  Depth 160mm (6.30 in) max excl rear cables
Weight Main Unit	2.6 Kg (5.7 lbs)

Environmental
Water Integrity	Complies with IPX6 & IPX7  Complies with EN60945
Operating Temperature Range	-25°C to 55°C
Storage Temperature Range	-25°C to 70°C
Humidity	up to 95%

Electrical
Communications Port	NMEA 0183 (version 4.01); NMEA2000 (version 3.101)
Nominal Supply Voltage	12V DC. Reverse polarity and over voltage protected		Rechargable Lithium Ion 2000mAh battery	12V DC. Reverse polarity and over voltage protected
Operating Voltage Range	9V DC to 16V DC			9V DC to 16V DC
Current Consumption	Less than 6A at High Power (13.6V)  Standby: 600 mA  Receive: 2 Amps		1 Amp Nominal	Less than 6A at High Power (13.6V)  Standby: 600 mA  Receive: 2 Amps
Fuse requirements			Inline fuse = 1.25A | Thermal Breaker = 1.25A
Charge Type			Wireless Inductive Charge

Transmitter
Channels	All available US, International and Canadian VHF marine bands
Frequency Range	156.000 – 157.425 MHz  155.500 to 161.425 MHz Private channels
Frequency Stability	+ / - 1.5 ppm
Channel Spacing	12.5 kHz
Power Output	High Power = 25 Watt  Low Power = 1 Watt
Spurious emmission	Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation	+/- 5kHz
Antenna port impedance	50 ohms typical

Receiver
Receiver Type	Double Conversion Super Heterodyne
Channels	All available US, International and Canadian VHF marine bands
Frequency Range	156.000 – 157.425 MHz  155.500 to 161.425 MHz Private channels
Wireless Frequency		2.4GHz	2.4GHz
Sensitivity:	Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity	Less than -2 dBµ EMF
Hum & Noise	Better than -40 dB
Audio Distortion	Less than 10%
Receiver Sensitivity	Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical  Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity	More than 70 dB
Spurious Response Rejection	More than 70 dB
Inter Modulation Rejection	More than 70 dB

Speaker (Active & Passive)
External Passive Speaker Power	5W (4Ω) / 2.5W (8Ω) (Passive)	5W (8Ω) (Acitve)
Hailer Speaker Power Output	24W (4Ω) / 12W (8Ω)

GPS
Number of channels	72
Cold Start	29s
Receiver IC Sensitivity	-167 dBm (Tracking) / -148 dBM (Acquisition)
GNSS Compatibility	GPS  GLONASS  *BeiDou
SBAS Compatibility	WAAS  EGNOS  MSAS
Special Features	Active jamming and interference reduction
Operating frequencies	GPS L1 C/A  GLONASS L10F  Beidou B1
Signal Acquisition	Automatic
Almanac Update	Automatic
Geodetic Datum	WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate	20 Hz (20 times per second concurrent GNSS)
Positional Accuracy	Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time
