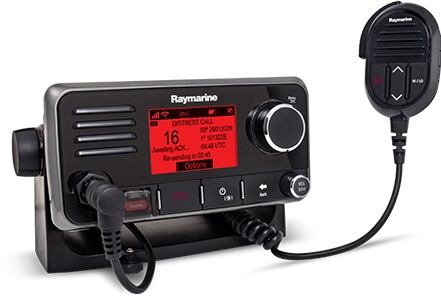

Raymarine Ray60 VHF Radio With Dual Station Control & Intercom Capability - E70245



The Raymarine Ray60 is a full-sized VHF radio that is packed with essential communication features every boater needs. Add the optional handset accessory and you can use your Ray60 from 2 locations onboard the boat. The handset also enables intercom calling from station to station.

Full of features, ultra-compact dimensions

The Raymarine Ray60 VHF Radio has an oversized LCD display with intuitive menu and icons. It boasts a wide array of standard features including NOAA weather alert, dual-watch, tri-watch, scanning, selective scanning, and much more.

The Ray60's fist-mic has built-in controls for channel up/down, hi/low power selection, and instant access to channel 16 or another preferred channel. The fist-mic also features noise-cancelling technology so you'll always be heard loud and clear regardless of engine or background noise. Ray60's fist-mic is also detachable and can be connected from the front or rear for installation flexibility.

The Ray60 features standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems and it integrates seamlessly with Raymarine LightHouse II multifunction displays for advanced DSC functions.

Flexible mounting options

The Raymarine Ray60 offers flexible mounting too. Use the included trunnion bracket to attach the radio to any console, bulkhead or overhead. The radio can also be flush-mounted using its convenient front-mount attachment points.

The included Gunmetal Silver bezel matches the Ray60 to Raymarine's latest multifunction displays. An optional black bezel kit is also available.

Optional second station kit

The Ray60 VHF Radio also supports the optional second station handset for remote locations. This gives you full-function VHF and intercom capability from a second location onboard.
The handset features an oversized LCD display and high contrast text and graphics that are visible day or night.
In addition to providing full access to all of the VHF capabilities, you'll also enjoy the convenience of station-to-station intercom calling between the handset and main radio.

Key Features

• Dual station and intercom capable with optional handset Accessory
• Oversized LCD display for better viewing
• Detachable fist-mic with built-in controls and mic relocation capability
• Detachable gunmetal silver bezel and optional black bezel.
• Standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems

Specifications and Dimensions - E70245

Size (HxWxD) Main Unit	Height -inc bezel = 98.5mm (3.9 in) Width - inc bezel = 199mm (7.8 in) max Depth 204.6mm (8 in) max excl rear cables
Weight Main Unit	2.0 Kg (4.4 lbs)
Environmental Specification
Water Integrity	Complies with IPX6 & IPX7 Complies with EN60945
Operating Temperature Range	-20°C to 60°C
Storage Temperature Range	-25°C to 70°C
Humidity	up to 95%
Electrical Specification
Communications Port	NMEA 0183 (version 4.01); NMEA2000 (version 3.0)
Nominal Supply Voltage	12V DC. Reverse polarity and over voltage protected
Operating Voltage Range	9V DC to 16V DC
Current Consumption	Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps
Transmitter Specification
Channels	All available US, International and Canadian VHF marine bands
Frequency Range	156.000 – 157.425 MHz 155.500 to 161.425 MHz Private channels
Frequency Stability	+ / - 1.5 ppm
Channel Spacing	12.5 kHz
Power Output	High Power = 25 Watt Low Power = 1 Watt
Spurious emmission	Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation	+/- 5kHz
Antenna port impedance	50 ohms typical
Receiver Specification
Receiver Type	Double Conversion Super Heterodyne
Channels	All available US, International and Canadian VHF marine bands
Frequency Range	156.000 – 157.425 MHz 155.500 to 161.425 MHz Private channels
Sensitivity:	Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity	Less than -2 dBµ EMF
Hum & Noise	Better than -40 dB
Audio Distortion	Less than 10%
Receiver Sensitivity	Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical  Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity	More than 70 dB
Spurious Response Rejection	More than 70 dB
Inter Modulation Rejection	More than 70 dB
Speaker Specification
Base Station Speaker Power Output	2.5W (8Ω)
Fistmic Speaker Power	1W (16Ω)
External Speaker Power	5W (4Ω) / 2.5W (8Ω)
