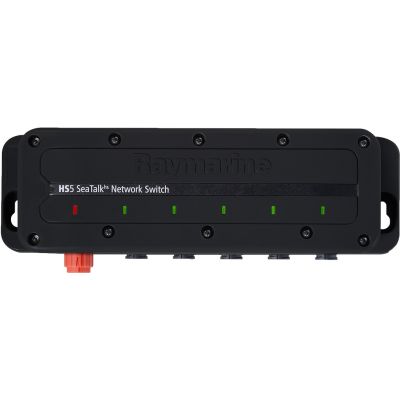

Raymarine HS5 Network Switch (RayNet) - A80007
The Raymarine HS5 Network Switch works with Raymarine's latest c-Series and e-Series Multifunction Displays and accessories and serves as the central connection point for the SeaTalk High Speed Network. SeaTalkHS data is quickly distributed to other SeaTalkHS equipment using the HS5 switch. Information shared using the SeaTalkHS network includes shared cartography (between compatible displays), digital radar data and sonar data.
Part Number: Raymarine A80007
Save $15.00 with Code + Free US Shipping
Reference: A80007
In Stock: 17
$349.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Raymarine HS5 Network Switch - A80007
SeaTalkHS data is quickly distributed to other SeaTalkhs equipment using the HS5 switch. Information shared using the SeaTalHS network includes shared cartography (between compatible displays), digital radar data and sonar data.
1 Network Switch
2 Fixing Screws
3 Power Cable (red and black)
4 Documentation pack, consisting of: Installations Instructions, Mounting Template, and Warranty policy.
SeaTalkHS data is quickly distributed to other SeaTalkhs equipment using the HS5 switch. Information shared using the SeaTalHS network includes shared cartography (between compatible displays), digital radar data and sonar data.
Multiple Switches
Systems with more than 5 SeaTalkHS devices require more than one Raymarine network switch. Network switches can be connected together ("daisy-chaining") for this purpose.
The Raymarine HS5 Network Switch provides a dedicated high-speed (1000 Mbit/S) port for connecting switches together while still retaining full data bandwidth throughout the system.
Each switch only has one high-speed port (port 5), so you can only connect up to 2 switches using the high-speed (1000 Mbit/S) connection. Any additional network switches must be connected together using a standard speed (100 Mbit/S) port.
Note: The maximum number of SeaTalkHS devices that can be connected in any single system is 25.
Key Features
- 12V or 24V DC
- 5 port - Watertight RayNet connection
- 10Mbit/sec, 100Mbit/sec and 1000 Mbit/sec (5th port only) supported network speeds.
- Gigabit 5th port allows higher speed across switches should a 2nd switch be necessary.
Technical Specifications
| Product Number | Raymarine A80007 |
| Dimensions | 10in x 3.5in x 3in (252.5mm x 88.6mm x 75mm) |
| Nominal Supply Voltage | 12V or 24V |
| Operating Voltage Range | 9 - 32V |
| Power Consumption | <2.5W / <600mA @ 12V |
| Enviromental | Operating Temperature: -13F to 131F |
| Supported Connection Protocols | SeaTalkHS |
| Supported Connection Speeds | 10 Mbit/S | 100 Mbit/S | 1000 Mbit/S |
What's In The Box?
1 Network Switch
2 Fixing Screws
3 Power Cable (red and black)
4 Documentation pack, consisting of: Installations Instructions, Mounting Template, and Warranty policy.
