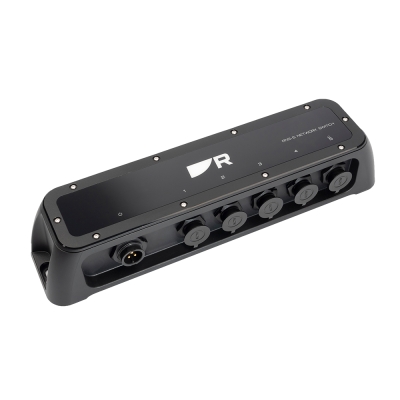

Raymarine RNS-5 Network Switch Gigabit (RayNet) - A80731
The Raymarine RNS-5 network Gigabit switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras.
Part Number: Raymarine A80731
Save $15.00 with Code + Free US Shipping
Reference: A80731
In Stock: 18
$394.55
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Raymarine RNS-5 Network Switch - A80731
The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.
Multiple Switches
Systems with more than 5 SeaTalkHS devices require more than one Raymarine network switch. Network switches can be connected together ("daisy-chaining") for this purpose.
The Raymarine RNS-5 Network Switch provides a dedicated high-speed (1000 Mbit/S) port for connecting switches together while still retaining full data bandwidth throughout the system.
Note: The maximum number of SeaTalkHS devices that can be connected in any single system is 25.
Key Features
- 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
- Rugged IPX6 and IPX7 construction
- Reliable, waterproof RayNet connector Ethernet cable ports
- Designed for simple bulkhead mounting
- LED power and network port status indicators
- Unmanaged- simply plug and play with Raymarine devices
- No complicated setup or configuration
Technical Specifications
| Product Number | Raymarine A80731 |

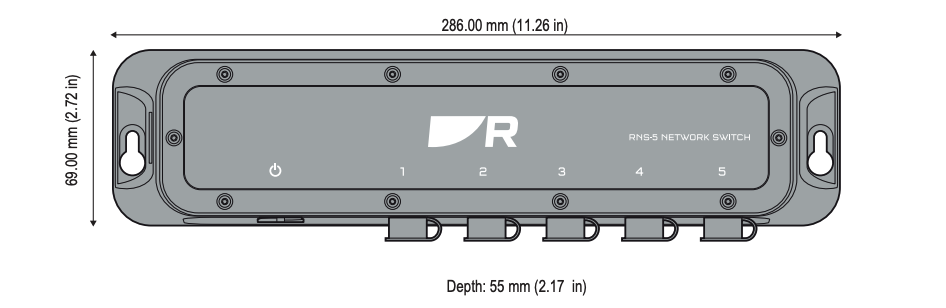

| Dimensions | 11.26in x 2.72in x 2.17in (286mm x 69mm x 55mm) |
| Nominal Supply Voltage | 12V or 24V |
| Operating Voltage Range | 9 - 32V |
| Power Consumption | <2.5W / <600mA @ 12V |
| Enviromental | Operating Temperature: -13F to 131F |
| Supported Connection Protocols | SeaTalkHS |
| Supported Connection Speeds | 1 Gigabit |
What's In The Box?
1 Network Switch
2 Fixing Screws
3 Power Cable (red and black)
4 Documentation pack, consisting of: Installations Instructions, Mounting Template, and Warranty policy.
