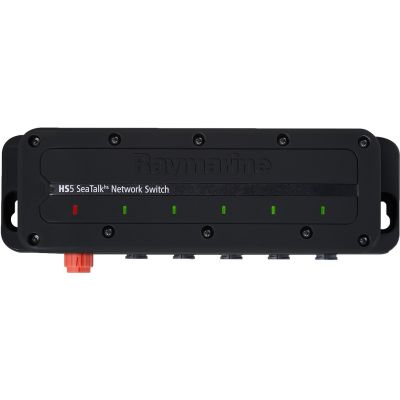

Conmutador de red Raymarine HS5 (RayNet) - A80007

El conmutador de red HS5 de Raymarine funciona con las pantallas multifunción y los accesorios más recientes de las series c y e de Raymarine y sirve como punto de conexión central para la red de alta velocidad SeaTalk. Los datos de SeaTalkHS se distribuyen rápidamente a otros equipos SeaTalkHS mediante el conmutador HS5. La información compartida mediante la red SeaTalkHS incluye cartografía compartida (entre pantallas compatibles), datos de radar digital y datos de sonda.

Número parte: Raymarine A80007

Citimarine Raymarine Discount Coupon
Ahorra $15.00 con el codigo RAY5 + Envio Gratuito a EE.UU

Referencia: A80007
En stock: 11
349,99 $

Calculador de envio
Este artículo calificó para envío gratuito
Envio gratuito para envíos superiores a 99$
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Calculador de envio
Raymarine HS5 Network Switch - A80007

Raymarine Network Switch

SeaTalkHS data is quickly distributed to other SeaTalkhs equipment using the HS5 switch. Information shared using the SeaTalHS network includes shared cartography (between compatible displays), digital radar data and sonar data.

Multiple Switches

Systems with more than 5 SeaTalkHS devices require more than one Raymarine network switch. Network switches can be connected together ("daisy-chaining") for this purpose.

The Raymarine HS5 Network Switch provides a dedicated high-speed (1000 Mbit/S) port for connecting switches together while still retaining full data bandwidth throughout the system.

Each switch only has one high-speed port (port 5), so you can only connect up to 2 switches using the high-speed (1000 Mbit/S) connection. Any additional network switches must be connected together using a standard speed (100 Mbit/S) port.

Note: The maximum number of SeaTalkHS devices that can be connected in any single system is 25.

Raymarine A80007Raymarine HS5

Key Features

  • 12V or 24V DC
  • 5 port - Watertight RayNet connection
  • 10Mbit/sec, 100Mbit/sec and 1000 Mbit/sec (5th port only) supported network speeds.
  • Gigabit 5th port allows higher speed across switches should a 2nd switch be necessary.

Technical Specifications

Product Number Raymarine A80007
Dimensions 10in x 3.5in x 3in
(252.5mm x 88.6mm x 75mm)
Nominal Supply Voltage 12V or 24V
Operating Voltage Range 9 - 32V
Power Consumption <2.5W / <600mA @ 12V
Enviromental Operating Temperature: -13F to 131F
Supported Connection Protocols SeaTalkHS
Supported Connection Speeds 10 Mbit/S | 100 Mbit/S | 1000 Mbit/S

What's In The Box?

Raymarine Network Switch

1 Network Switch
2 Fixing Screws
3 Power Cable (red and black)
4 Documentation pack, consisting of: Installations Instructions, Mounting Template, and Warranty policy.
