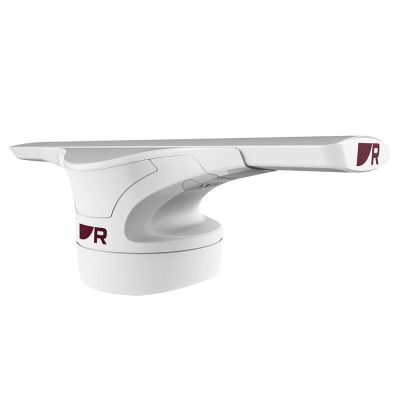

Raymarine Cyclone Radar w/ 3 ft. Open Array & 15M Cable - T70491
Raymarine Cyclone Radar w/ 3 ft. Open Array & 15M Cable - The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence. MFG: Raymarine T70491.
Reference: T70491
In Stock: 4
$6,999.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Raymarine Cyclone Radar w/ 3' Open Array & 15M Cable - Raymarine T70491
The Raymarine Cyclone Radar w/ 3 ft. Open Array & 15M Cable - T70491 radar delivers superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.
CUTTING EDGE DESIGN
Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
Innovative pedestal design conceals cable connections for a cleaner installation
THE ULTIMATE SITUATIONAL AWARENESS
Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
FISHING INTELLIGENCE
Performance tuned for locating sea birds
Enhanced Cyclone Bird Mode using CHIRP pulse compression technology
3' OPEN ARRAY SIZE
3' array provides open array performance in tight spaces
Pedestal Box E70620:
Pedestal
M10 Stud x4
M10 Nut x8
M10 Spring Washer x4
M10 Plain washer x4
Mounting gasket
Mounting template
Radar data cable 15m
Power cable 15m
VCM100
Cable clamp
VCM100 mounting screw x2
Cable clamp mounting screw x3
3' Antenna Box E70628:
Antenna
Threaded alignment guide
Washer
Spring washer
Nut
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
Specifications of the Raymarine Cyclone Radar w/ 3' Open Array & 15M Cable - T70491
The Raymarine Cyclone Radar w/ 3 ft. Open Array & 15M Cable - T70491 radar delivers superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.
CUTTING EDGE DESIGN
Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
Innovative pedestal design conceals cable connections for a cleaner installation
THE ULTIMATE SITUATIONAL AWARENESS
Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
FISHING INTELLIGENCE
Performance tuned for locating sea birds
Enhanced Cyclone Bird Mode using CHIRP pulse compression technology
3' OPEN ARRAY SIZE
3' array provides open array performance in tight spaces
Pedestal Box E70620:
Pedestal
M10 Stud x4
M10 Nut x8
M10 Spring Washer x4
M10 Plain washer x4
Mounting gasket
Mounting template
Radar data cable 15m
Power cable 15m
VCM100
Cable clamp
VCM100 mounting screw x2
Cable clamp mounting screw x3
3' Antenna Box E70628:
Antenna
Threaded alignment guide
Washer
Spring washer
Nut
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
Specifications of the Raymarine Cyclone Radar w/ 3' Open Array & 15M Cable - T70491
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 70 Watts |
| Power consumption (max) | 170 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 2.83 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1031 mm / 40.59 in |
| Weight | 7 Kg / 15.4 lb |
