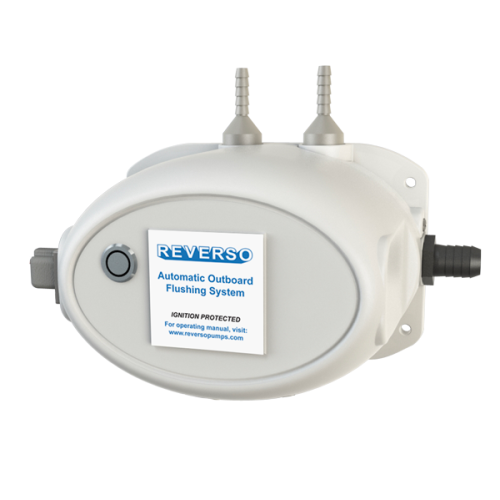

REVERSO Automatic Outboard Flushing System 2.0 - 2 Engines

REVERSO Automatic Outboard Flushing System 2.0 - 2 Engines

By buying this product you can collect up to Your cart will total 76 points that will be converted into a of $7.60 towards your next purchase! Must be to collect points.

REVERSO Automatic Outboard Flushing System 2.0 - 2 Engines

Customer ratings and reviews

REVERSO Automatic Outboard Engine Flushing System 2.0 - flush all outboard engines automatically in a sequence. After a single hose connection and one press of a button, the system will flush one engine at a time and shuts down after all flushing cycles are complete. Available for 2 engines set up, 12V DC. Not compatible with I/O Engines.

Part Number: 35-3862-01


In Stock: -1

35-3862-01

$762.99

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

REVERSO AUTOMATIC OUTBOARD FLUSHING SYSTEM 2.0 - 2 ENGINES

The solution to ushing saltwater from outboard engines and preventing corrosion.

KEY FEATURES

  • Prevent engine corrosion and clear out invasive species
  • Less cleaning time to put the boat away
  • Boat can be in or out of the water
  • Automatically switches to next motor until all have been flushed
Reverso Automatic Outboard Flushing System 2.0

Service Up To 4 Outboards Without The Hose Hassle

The system works whether the vessel is in or out of the water, with the engine off, and in the vertical or tilted position. The water travels from the hose, through the system, and sent to each engine for a preset time– until the last motor is used. The system automates the ushing sequence so the user does not have to connect the hose to every ushing port.

Built-In Solution To Flushing

It can be installed at the OEM level or as a retro t. Mounted on the bulkhead or transom locker, the system is permanently plumbed to each engine through the engine’s wiring loom. The system features the hose connection and start button on the unit itself. Similar
to Version 1.5, the Version 2 will also offer a separate hose connection and a waterproof start button that can be installed remotely near the transom and/or console. Minimizing the reach is a big added convenience.

SPECIFICATIONS

  • Voltage: DC 12V
  • Max Amp Draw: 3A
  • Base: Marine grade starboard - white
  • Cover: High-impact plastic
  • Water Inlet: 3/4" hose barb straight and 90° elbow included.
  • Water Outlet to Engine: 3/8" hose barb straight and 90° elbow fitting. 1/2" hose barb straight and 90° elbow fitting for engines over 300 HP.
HOW TO CHOOSE YOUR AUTOMATIC OUTBOARD FLUSHING SYSTEM

Step 1 - Choose your System:
a basic system to flush all outboard motors. 3' inlet hose kit is included.


Reverso Automatic Outboard Flushing System 2.0

Part # Engine Setup
35-3861-01 1 Engine
35-3862-01 2 Engines
35-3863-01 3 Engines
35-3864-01 4 Engines

Step 2 - Choose Fitting Kit:
Required: Inlet 3/4” straight and 90° elbow fitting, Outlet 3/8” and 1/2” hose barb in straight and 90° elbow fittings.



Part # Engine Setup
35-3861-02 2 Engines

Step 3 - Choose your remote switch (Optional):
to mount a remote switch in an area easier to access than the system itself.


REVERSO Remote Switch Kit

Part # Harness Size
35-3954-02 6 feet
35-3954-04 12 feet
35-3954-06 18 feet

Step 4 - Choose inlet hose (Optional): to mount a remote hose connection elsewhere or provide a comfortable reach to connect hose.

REVERSO Inlet Hose Kit

Part # Hose Kit Size
35-3951-02 2 feet
35-3951-03 3 feet
35-3951-04 6 feet
35-3951-05 9 feet

Step 5 - Choose deck kit (Optional): can be used with inlet hose kit. Includes angled connector.

Reverso Deck Kit   Quick%20Disconnect%20Straight%20Kit.jpg


Part # Deck Kit
35-3952-01 With 3/4" hose barb straight fitting
35-3952-02 With 3/4" hose brb 90-degree elbow fitting

Step 6 - Choose Faceplate (Optional): to mount a Deck Kit only, or Deck Kit and Remote Switch.

Reverso Faceplate

Part # Faceplate
35-3952-07 Deck Kit Only
35-3952-03 For Deck Kit and Remote Switch
35-3952-04 For Deck Kit and Remote Swicth 90°
35-3952-05 For Deck Kit and Remote Switch 180°
35-3952-06 For Deck Kit and Remote Switch 270°


Deck Kit Only


Deck Kit and Remote Switch


Deck Kit and Remote Switch 90°


Deck Kit and Remote Switch 180°



Deck Kit and Remote Switch 270°



Download
