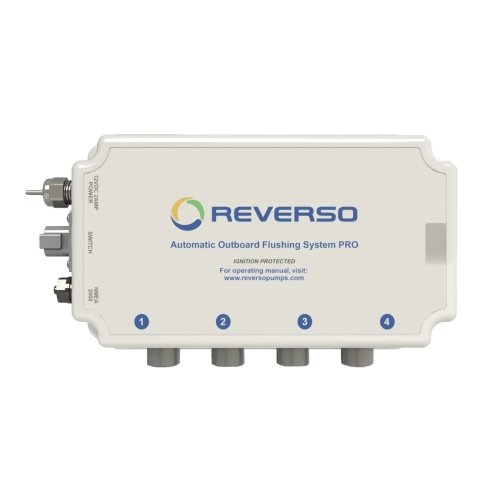

REVERSO AUTOMATIC OUTBOARD FLUSHING SYSTEM PRO - 4 ENGINES
| Feature |
OFS V3.0 |
OFS V4.0 |
| Warranty |
1 Year |
3 Years |
| Serviceability |
Factory serviceable by Reverso Technician |
Field serviceable by trained Reverso Technician |
| Enclosure Design |
Impact-resistant .100” reinforced ABS |
Impact-resistant .200” reinforced glass-filled Nylon (twice as thick) |
| Water Resistance |
Water-resistant |
Waterproof to IP67 & IP69k (protected against high-pressure, high-temp spray) |
| Unused Valves |
Sealed with valve caps and external plugs |
Sealed within manifold and case mold (eliminating ingress points) |
| Manifold Design |
Fixed manifold with solenoids built into the base |
Modular manifold with larger solenoids |
| Flow Rate Improvement |
Standard flow rate |
Up to 45% increase in flow rate |
| Pressure at Output Ports |
Standard |
20% higher pressure at output ports |
| Electrical Connections |
Fixed electrical connections |
Removable electrical connections |
| Pressure Sensor |
Fixed pressure switch |
Variable pressure transducer |
The solution to flushing saltwater from outboard engines and preventing corrosion.
KEY FEATURES
- Prevent engine corrosion and clear out invasive species
- Less cleaning time to put the boat away
- Boat can be in or out of the water
- Automatically switches to next motor until all have been flushed
%20(dragged)%201.jpg)
Service Up To 4 Outboards Without The Hose Hassle
The system works whether the vessel is in or out of the water, with the engine off, and in the vertical or tilted position. The water travels from the hose, through the system, and sent to each engine for a preset time– until the last motor is used. The system automates the ushing sequence so the user does not have to connect the hose to every ushing port.
Built-In Solution To Flushing
It can be installed at the OEM level or as a retro t. Mounted on the bulkhead or transom locker, the system is permanently plumbed to each engine through the engine’s wiring loom. The system features the hose connection and start button on the unit itself. Similar
to Version 1.5, the Version 2 will also offer a separate hose connection and a waterproof start button that can be installed remotely near the transom and/or console. Minimizing the reach is a big added convenience.
SPECIFICATIONS FOR 35-3864-04
- Voltage: DC 12V
- Max Amp Draw: 3A
- Base: Marine grade starboard - white
- Cover: High-impact plastic
- Water Inlet: 3/4" hose barb straight and 90° elbow included.
- Water Outlet to Engine: 3/8" hose barb straight and 90° elbow fitting. 1/2" hose barb straight and 90° elbow fitting for engines over 300 HP.
HOW TO CHOOSE YOUR AUTOMATIC OUTBOARD FLUSHING SYSTEM
Step 1 - Choose your System: a basic system to flush all outboard motors. 3' inlet hose kit is included.
| Part # |
Engine Setup |
| 35-3861-04 |
1 Engine |
| 35-3862-04 |
2 Engines |
| 35-3863-04 |
3 Engines |
| 35-3864-04 |
4 Engines |
Step 2 - Choose Fitting Kit:
Required: Inlet 3/4” straight and 90° elbow fitting, Outlet 3/8” and 1/2” hose barb in straight and 90° elbow fittings.
Step 3 - Choose your remote switch (Optional):
to mount a remote switch in an area easier to access than the system itself.
Step 4 - Choose inlet hose (Optional): to mount a remote hose connection elsewhere or provide a comfortable reach to connect hose.
Step 5 - Choose deck kit (Optional): can be used with inlet hose kit. Includes angled connector.
| Part # |
Deck Kit |
| 35-3952-01 |
With 3/4" hose barb straight fitting |
| 35-3952-02 |
With 3/4" hose brb 90-degree elbow fitting |
Step 6 - Choose Faceplate (Optional): to mount a Deck Kit only, or Deck Kit and Remote Switch.
Deck Kit Only
Deck Kit and Remote Switch
Deck Kit and Remote Switch 90°
Deck Kit and Remote Switch 180°
Deck Kit and Remote Switch 270°
