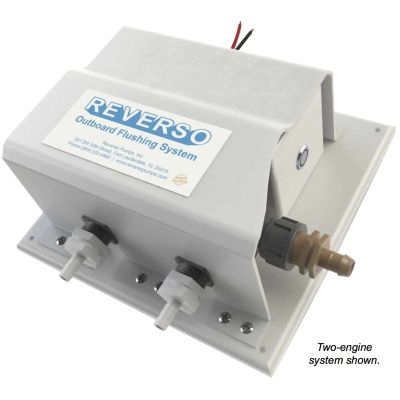

REVERSO Automatic Outboard Flushing System
REVERSO Automatic Outboard Engine Flushing System - flush all outboard engines automatically in a sequence. After a single hose connection, and one press of a button, the system will flush one engine at a time and shuts down after all flushing cycles are complete. Available for 2, 3, 4, and 5 engines set ups, 12V - 24V DC.
DISCONTINUED
CHECK NEW MODEL HERE!
Select Model:
Reference: 35-3856-01
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
REVERSO AUTOMATIC OUTBOARD FLUSHING SYSTEM
The solution to ushing saltwater from outboard engines and preventing corrosion.
KEY FEATURES
- Works when boat is in or out of the water
- Connects to motor's flushing port
- Flushes for preset time on each engine
- Automatically switches to next motor until all have been flushed
Flushes Up To 5 Motors Without The Hose Hassle
The system works whether the vessel is in or out of the water, with the engine off, and in the vertical or tilted position. The water travels from the hose, through the system, and sent to each engine for a preset time–until the last motor is flushed. The system automates the flushing sequence so the user does not have to connect the hose to every ushing port.
Enables One Hose Connection and One Button To Start
To flush two or more motors:
1. Connect hose to the system
2. Press the start button, and it will run the preset time for flushing (based on the manufacturer’s requirements).
3. After the first engine is flushed, the system automatically switches to the next and it will shutdown once all engines are complete. Also, it can be stopped at any time during the sequence.
Permanently Connects To The Motors’ Flushing Port
It can be installed at the OEM level or as a retro fit. Mounted on the bulkhead or transom locker, the system is permanently plumbed to each engine through the engine’s wiring loom. It’s recommended the hoses connect to each engine’s ushing port with a Y-fitting. That allows for either the Reverso system to complete the flushing, or an optional port that a service technician may need.
SPECIFICATIONS
- Voltage: DC 12V - 24V
- Max Amp Draw: 3A / 12V, 1.5A / 24V
- Base: Marine grade starboard - white
- Cover: High-impact plastic
- Water Inlet: 3/4" hose barb
- Water Outlet to Engine: 3/8" hose barb, or 1/2" hose barb for engines over 300 HP
HOW TO CHOOSE YOUR AUTOMATIC OUTBOARD FLUSHING SYSTEM
Step 1 - Choose your System: a basic system to flush all outboard motors. 3' inlet hose kit is included.
| Part # | Engine Setup | Outlet (Barb) |
| 35-3856-01 | 1 Engine | 3/8" |
| 35-3857-01 | 2 Engines | 3/8" |
| 35-3858-01 | 3 Engines | 3/8" |
| 35-3859-01 | 4 Engines | 3/8" |
| 35-3860-01 | 5 Engines | 3/8" |
*Up to 300 HP Engines
| Part # | Engine Setup | Outlet (Barb) |
| 35-4200-01 | 1 Engine Over 300 HP | 1/2" |
| 35-4201-01 | 2 Engine Over 300 HP | 1/2" |
| 35-4202-01 | 3 Engine Over 300 HP | 1/2" |
| 35-4203-01 | 4 Engine Over 300 HP | 1/2" |
| 35-4204-01 | 5 Engine Over 300 HP | 1/2" |
*For engines over 300 HP
Step 2 - Choose your remote switch (Optional):
to mount a remote switch in an area easier to access than the system itself.
| Part # | Harness Size |
| 35-3954-01 | 3 feet |
| 35-3954-02 | 6 feet |
| 35-3954-03 | 9 feet |
| 35-3954-04 | 12 feet |
| 35-3954-05 | 15 feet |
| 35-3954-06 | 18 feet |
Step 3 - Choose inlet hose (Optional): to mount a remote hose connection elsewhere or provide a comfortable reach to connect hose.
| Part # | Hose Kit Size |
| 35-3951-01 | 2 feet |
| 35-3951-02 | 3 feet |
| 35-3951-03 | 6 feet |
| 35-3951-04 | 9 feet |
Step 4 - Choose deck kit (Optional): can be used with inlet hose kit. Includes angled connector.
| Part # | Deck Kit |
| 35-3952-01 | With 3/4" hose barb straight fitting |
| 35-3952-02 | With 3/4" hose brb 90-degree elbow fitting |
Step 5 - Choose Faceplate (Optional): to mount a Deck Kit only, or Deck Kit and Remote Switch..jpg)
| Part # | Faceplate |
| 35-3952-07 | Deck Kit Only |
| 35-3952-03 | For Deck Kit and Remote Switch |
| 35-3952-04 | For Deck Kit and Remote Swicth 90° |
| 35-3952-05 | For Deck Kit and Remote Switch 180° |
| 35-3952-06 | For Deck Kit and Remote Switch 270° |
Deck Kit Only
Deck Kit and Remote Switch
Deck Kit and Remote Switch 90°
Deck Kit and Remote Switch 180°
Deck Kit and Remote Switch 270°
