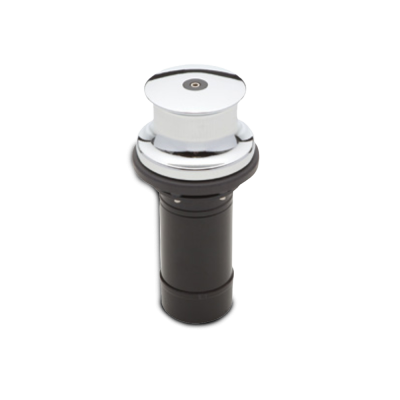

Muir Inline Vertical Capstan - VC800 - 600W - 12 V - 396 lb Max Load - (No-Gypsy)
The Muir Inline Vertical Capstan, specifically the VC800 model, is a powerful and efficient marine capstan designed for vertical mounting. It boasts a 600W one-piece integrated gearbox/motor assembly, offering increased power and speed compared to traditional gear systems. This capstan is suitable for a wide range of marine applications, including mooring, warping, anchoring, line hauling, and fishing. It is designed to accommodate various deck thicknesses and is available in a 12V DC configuration, making it a versatile and practical choice for boats and vessels.
Reference: VC800
$990.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Inline Vertical Capstan VC800 - Windlass
Muir introduce the new Inline drive capstans, delivering more power when you need it. These highly efficient and light weight capstans are fitted with a 600w one-piece integrated gearbox/motor assembly which provides increased power and speed normally not achieved with conventional gear systems. The one-piece assembly significantly reduces installation time and is ideal for use where below deck space is restricted. Designed to suit vessels up to 11m (36ft) the Inline capstan can be used for mooring, warping, anchoring, line hauling and fishing from any direction and are well suited to any application in either vertical or horizontal mounting positions. Accommodating various deck thickness, these models are available in 12V DC.
PRODUCT DETAILS
| VESSEL LENGTH | Up to 11m (Up to 36ft) |
| POWER SUPPLY (DC) | 12V |
| MOTOR (Watts) | 600 |
| MAX LOAD | 180kg (396lb) |
| WORKLOAD | 36kg (80lb) |
| AMPS WORKLOAD | 75 |
| MAX LINE SPEED | 39m/ min (128ft/ min) |
| CHAIN SIZE | N/A |
| ROPE SIZE | Up to 12mm (Up to 1/2") |
| WEIGHT | 8kg (18lbs) |
| BRAKE | Auto action roller clutch - will not run back |
DIMENSIONS
FEATURES
- - VC800 has 316 Stainless Steel Capstans
- - Capstan features knurled finish for increased grip
- - VC800 has clockwise rotation and has auto action clutch to prevent rollback
- - Unit can be mounted horizontally
- - Stainless steel mounting bolts
- - Shaft seal
- - Installation/Operation booklet
- - Deck switch included.
