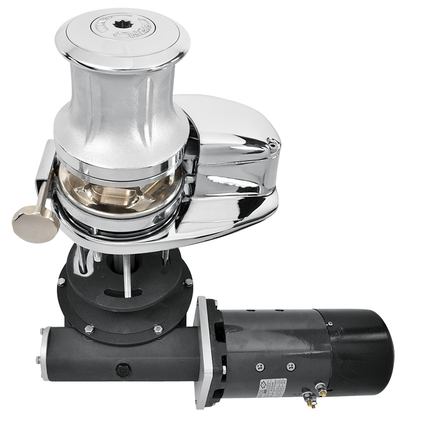

Lofrans' Project 2000 Chrome Vertical Windlass - 2300W - 24V - Capstand

The Project 2000 is a robust, powerful rope/chain windlass capable of managing all chain rodes for bluewater cruisers and coastal cruisers alike. Ideal windlass for boats from 59'-82'.

The motors of the Project windlasses are designed specifically to provide high torgue in every anchoring situation and their anchoring power can reach 45m / min. In case of function failure of the solenoids, there is the ability to bypass the solenoid with a connection to the terminal "E" and lift up the anchor.

All motors have IP66 rate, their body has double zincates and they are painted with a polyester coating. Also, they are sealed by a sequence of seals in order to prevent water intrusion.

Key Features

• Luxury chromed bronze base and drum
• Special watertight stainless steel ball bearing in the base
• With drum or Low profile
• Indepent Gypsy and drum operation
• Rope and chain combination Gypsy
• Manual chain release
• Manual override
• Rope chain management by the spring loaded arm
• Chain counter magnet pre-installed as standard
• Heavy duty two speed built in solenoids IP67 rated electric motor
• Anodised marine aluminium gearbox
• Control Box build in

Specifications for LW7977/1

Standard Equipment

• Two footswitches
• Watertight control box
• Clutch/manual operation handle
• Brake Hand

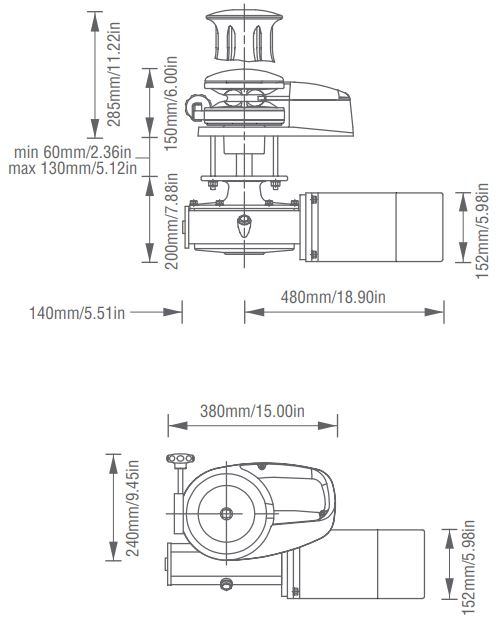

Dimensions
