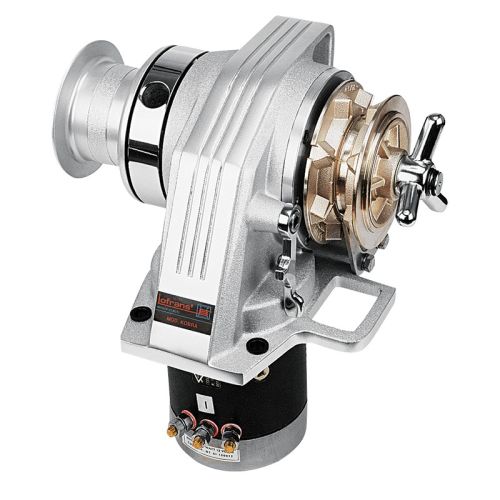

Kobra Horizontal Anodized Windlass - 1/4" HT, 5/16" HT/BBB, 3/8" PC/HT/BBB - 1000W - 12V
Lofrans' Kobra Horizontal Anodized Windlass. Kobra windlass is suitable for boats from 26 up to 46 feet offering the best performance and functionality, when there is adequate deck space or if the chain locker has limited size or accessibility. Lofrans' horizontal windlasses are simple to use, reliable, with their classic and timeless style making them perfect for many vessels, especially for the charter business.. Voltage: 12V. Motor Wattage: 1000W. Gypsy/Chain Size: 1/4" (HT), 5/16" (HT/BBB), 3/8" (PC/HT/BBB)
Part Number: LW375AN
Free US Shipping
Click here for details
Lofrans' Kobra Horizontal Anodized Windlass - 1000W - 12V
Lofrans' Kobra Horizontal Anodized Windlass. Kobra’s vertically-aligned motor and compact abovedeck profile make it ideal for crowded foredecks and installations where space is limited. Ideal windlass for boats up to 46'. Voltage: 12V. Motor Wattage: 1000W. Gypsy/Chain Size: 1/4" (HT), 5/16" (ALL), 3/8" (ALL).
Lofrans' horizontal anchor windlasses are produced by using marine grade aluminum alloy. The body is polished and anodized. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodized aluminum. Some models are available with a painted white polyester coating.
Lofrans' electric motors are specified to provide the necessary power for a long run. They are also designed to operate at high speed, so as to reduce the operations time. Titan, Ercole, and Super Ercole are also available in hydraulic motor versions. Also, windlasses are supplied with manual override which makes the windlass capable of chain recovery in the case of electrical failure. The manual override has the secondary function to provide a safety mechanism so that chain jams do not damage the deck.
Key Features
- Marine aluminum anodized body
- Independent Gypsy and drum operation
- Manual chain release
- Manual override
- Heavy duty rated IP66 electric motor
- Automatic free fall available as option
- Control Box included in package
Specifications for LW375AN
| Finish | Anodized |
| Power Rating | 1900 lbs |
| Motor Wattage | 1000W |
| Power Supply | 12V |
| Approx. Amp Draw | 70-120 |
| Max Retrieval Speed (ft/min.) | 75 |
| Chain Size/Type | 1/4" (HT), 5/16" (HT/BBB), 3/8" (PC/HT/BBB) |
| Rope Sizes | 1/2"-3/4" (Rope Drum) |
| Approximate Ship Weight (lbs) | 46 |
Standard Equipment
- Two footswitches
- Watertight control box
- Clutch/manual operation handle

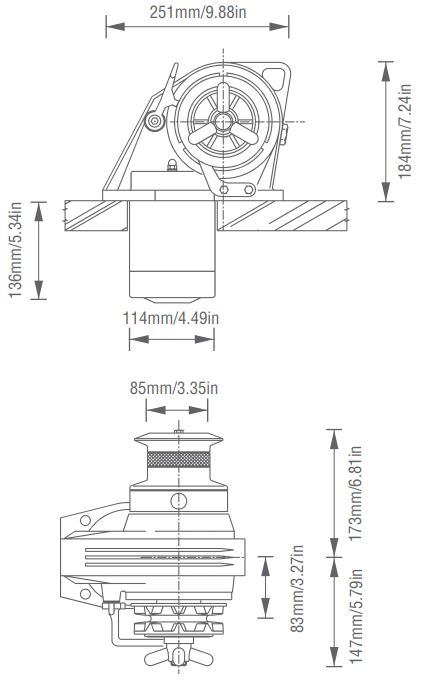

Dimensions
