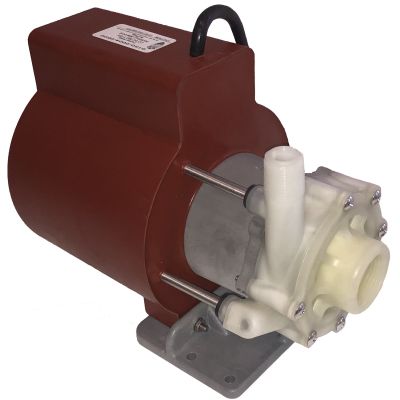

MARCH PUMPS LC-5M-MD / PML1000C (870 GPH) 230V Submersible A/C Pump

March Pump LC-5M-MD 230V is an American submersible seal-less centrifugal magnetic drive pump - 230V 50/60HZ 14.5GPM. It might be used submerged or not submerged. 1"FPT Inlet, 1/2"MPT Outlet. Commonly used for marine air conditioning and fountains. Upgraded model comes with Noryl Front Housing, 3-Flat Stainless Steel Shaft, Carbon Impeller Bushing.

March Pumps Part Number: LC-5M-MD 230V


Replaces Dometic Part Number: 225500288 - PML1000 230V



Reference: LC-5M-MD 230V
$994.99

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

March LC-5M-MD 230V Mag-Drive Centrifugal Pump

March Pump's industrial LC-5M-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (or around 11PSI).  The LC-5M-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet.  When submerged, Epoxy, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). Direct replacement for Dometic PML1000 230V Part Number: 225500288

Operation

Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.

Electrical

Motor is available in 230 Volt 50/60 Hz, 1 phase. 115 Volt motors have a 6 ft. (1.8 m) cord with plug. 230 V motors have a 6 ft. (1.8 m) cord with no plug. The motors are U.L. listed and rated as continuous duty.

Limited Warranty

March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration.

Specifications

Inlet - Outlet: 1” FPT - 1/2” MPT
Max Internal Pressure: 25 psi (1.7 bar)
Max Liquid Temperature: 130 °F (54 °C)
Dimensions (inches): 7.14 x 5.63 x 9.85
Packed Weight (lbs): 17.70

LC-5C-MD Curve

Dimensions

LC-5C-MD Dimensions

March Pumps MA LC-5C-MD 230V
