i6 System for North and South American Service (All Americas) - 24" Dish

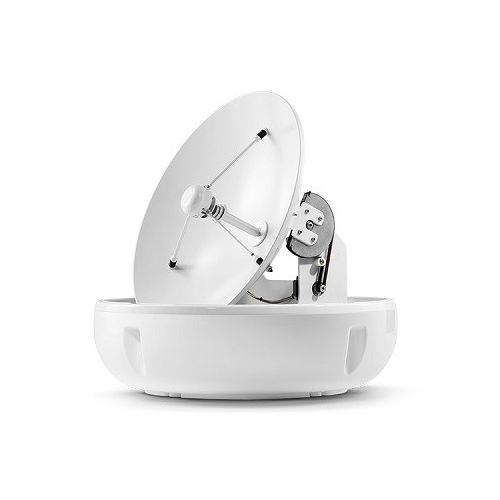

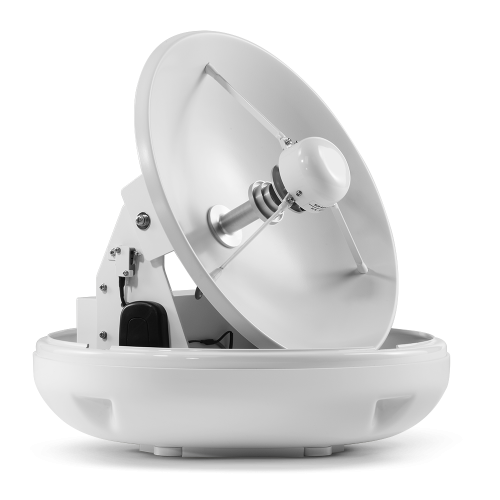

Intellian i6 All Americas Satellite TV System for North and South American Service - 24" Dish. Configured for US, Canadian & Latin American systems (DirecTV, DirecTV LA, DISH, Bell TV). Includes built-in GPS, 15M RF, 10M pwer/data cables, and control box. *Oversized Item
Intellian i6 Satellite Television System With 24" Dish, for North and South American Service
With innovative technologies, the i6 always maintains the highest signal strength available and ensures crystal-clear TV reception.
Intellian's super-efficient 60cm (24 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i6 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching "SEARCHING FOR SATELLITE" on their screen.
Features of the Intellian i6 All Americas Marine Satellite TV System:
Built in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
Travel further North or South with an extended elevation range of 10 deg. to 80 deg.
Simplicity of design, no external compass or rate sensors required
Auto satellite switching function from your remote control
60 deg. per second turn rate ensures signal tracking at high speeds and in rough seas
Built in GPS enables faster signal acquisition
Built-in HD module for Ku-band HD TV reception
Automatic Satellite Search and Identification Function
2-axis Stabilization provides high speed tracking
Intuitive controls with a digital information display on the ACU
WorldView Capable
The available i6W is equipped with Intellian's patented WorldView LNB, which allows for complete global operation without needing to adjust the antenna or change LNB.
Works with All Providers
Compatible with leading Ku-band satellite TV service providers around the world.
Automatic Skew Control
The available i6P version is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances in regions with linear transmissions such us Europe and South America.
High Performance Antenna

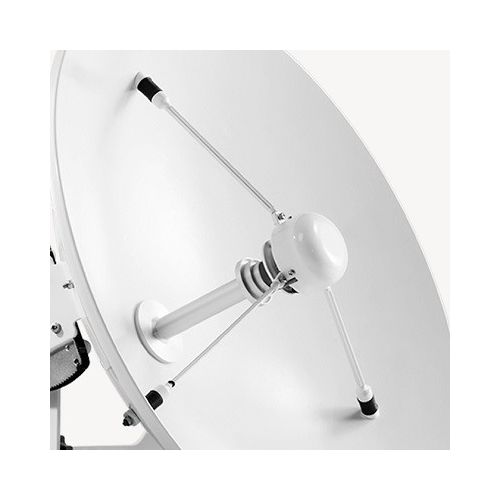

- 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
- Circular or linear polarization depending on region and LNB selected
- Built-in HD module for Ku-band HD TV reception.
iQ²: Quick&Quiet℠ Technology
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort.
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere.
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas.
Specifications of Intellian i6 System for North and South American Service (All Americas) - 24" Dish -B4-609AA
| Input Voltage | 12 VDC |
|---|---|
| Antenna | 28" Dome |
| Tracking | Offshore |
| HDTV Compatible | Yes |
| Other Functions | Built-in GPS; GPS input port |
| Dimensions | Dome: 27.5"D x 28.3"H; Wt: 44 lbs. ACU: 7"W x 2.1"H x 8.5"D; Wt: 2.6 lbs. |
| Service Period | DirecTV, DISH, Bell TV (receiver and subscription sold separately) |
| Warranty | Three year parts, one year labor |
