Glamox DL42-R77 (B0 & B15)
The DL42-R77 is a compact LED-downlight specifically designed to be integrated into B0 or B15 fire approved metal ceilings. The use of fire resistant materials combined with a unique heat sink makes t
Reference: GLX-DL42-R77-B0--B15
Glamox / Marine lighting
Glamox DL42-R77 (B0 & B15)

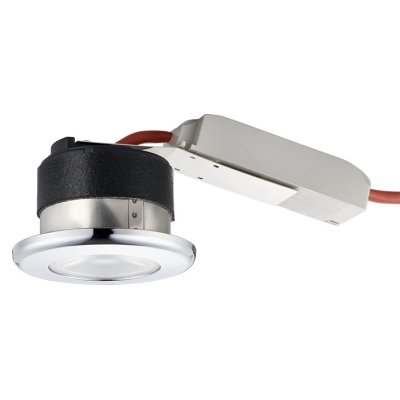

The DL42-R77 is a compact LED-downlight specifically designed to be integrated into B0 or B15 fire approved metal ceilings. The use of fire resistant materials combined with a unique heat sink makes this downlight to the perfect choice for B15 metal ceilings. With the use of the DL42-R77 there is no
The DL42-R77 is a compact LED-downlight specifically designed to be integrated into B0 or B15 fire approved metal ceilings. The use of fire resistant materials combined with a unique heat sink makes this downlight to the perfect choice for B15 metal ceilings. With the use of the DL42-R77 there is no need for any additional fire hats on the top of the metal ceiling to keep the B15 approval. The installation of the lum
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Optic | 24° or 38° lens optic. Optional 80° opal. |
| Decor | In chrome (CH) or white (WH). Other colours on request. |
| Light Source | LED 756 lumen out Colour rendering: CRI > 80, 3000 K Power consumption 8 W Lifetime: 50 000 hour, L70 at max Ta=45°C |
| Mounting | Recessed mounting, fixed with 6 self-tapping screws. To be delivered with 300 mm cable. |
| Connection | Connection possibilities with ENSTO (QCE), WAGO (QCA) quick connector or cable without quick connector (C1). |
| Electrical specification | Different versions: DL42 HFe Switch on/off, external driver DL42 HFDa Dimmable, 1-10V, external driver DL42 Dali Dimmable, DALI, external driver DL42 PC Dimmable, phase cut, external driver |
| Application | For all B15 rated pax, public and crew areas such as cabins, corridors, staircases, shops, libraries, lounges, restaurant. Designed only for useage in metal ceilings. |
| Design | Designed for B0 and B15 ceilings. Only for use in metal ceilings. According to marine classification societies and IEC standards |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
