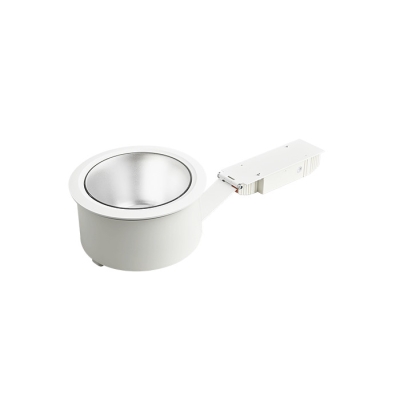

Glamox DL70-R155 (M) B0
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energyefficient LED downlight family suitable for marine applications on various types of vesse
Reference: GLX-DL70-R155-M-B0
Glamox / Marine lighting
Glamox DL70-R155 (M) B0
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energyefficient LED downlight family suitable for marine applications on various types of vessels. It offers excellent light parameters, a long lifespan and flicker-free light with low glare. Thi
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energyefficient LED downlight family suitable for marine applications on various types of vessels. It offers excellent light parameters, a long lifespan and flicker-free light with low glare. This ensures significant energy savings and sustainability while maintaining the desired visual comfort. DL70 fits nearly a
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Application | B0 fire rated ceilings in Crew and Passenger areas onboard any type of vessel. Cabins, corridors, stair cases, lounges.. |
| Light Source | Led from 800 up to 2200 lumens, Light color 3000 or 4000K. Others on request. |
| Housing | B0 steel housing. IP55 from below. Trim rings in White (WH), Chrome (CH), Black (BL) or Brass (BR). Can be delivered with or without (WO TR) trim. |
| Design | According to rules of marine classification societies. |
| Optics | Available with low glare Silver Matt (SM) reflector and Wide Beam. Optionally with Black Matt (BM) or Silver mirror type (SI) reflector. Lens on the led. |
| Mounting | Recessed mounting, with three screws (countersunk). For B15 fire classification please look at service manual. |
| Connection | Delivered with quick connectors, 2 x Wago Midi (2xQCA) as standard. Optionally with 2 x Ensto NAC (2xQCE). Connection (BOX) version available with (2xM20) Cable glands. |
| Accessories | Wago or Ensto connectors for supply cables can be delivered as extras. Can be found under accessories. |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
