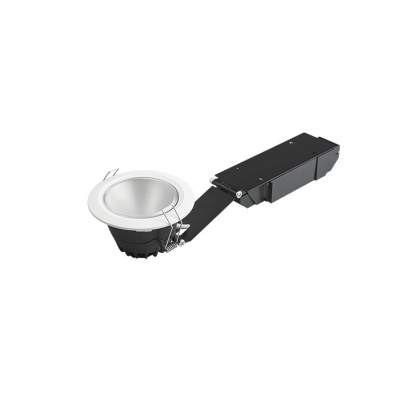

Glamox DL70-R92 (M)
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energyefficient LED downlight family suitable for marine applications on various types of vesse
Reference: GLX-DL70-R92-M
Glamox / Marine lighting
Glamox DL70-R92 (M)
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energyefficient LED downlight family suitable for marine applications on various types of vessels. It offers excellent light parameters, a long lifespan and flicker-free light with low glare. Thi
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energyefficient LED downlight family suitable for marine applications on various types of vessels. It offers excellent light parameters, a long lifespan and flicker-free light with low glare. This ensures significant energy savings and sustainability while maintaining the desired visual comfort.
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Application | Crew and Passenger areas onboard any type of vessel. Cabins, corridors, stair cases, restaurants, lounges and shopping areas. Bridge and ECR with EMC1 variants. See also similar web group for B0 fire rated versions. |
| Light Source | Led from 500 up to 1100 lumens, Light color 3000 or 4000K. Others on request. |
| Housing | An aluminium heat sink combined with halogen-free, flame-retardant, V0-quality, glass-reinforced plastics. IP55 from below. Trim rings in White (WH), Chrome (CH), Black (BL) or Brass (BR). Can be delivered with or withou |
| Design | According to rules of marine classification societies. |
| Optics | Available with low glare Silver Matt (SM) reflector and Medium Beam. Optionally with Black Matt (BM) or Silver mirror type (SI) reflector. Narrow Beam on request. Reflectors are protected for dust and fingermarks by a cl |
| Mounting | Recessed mounting, with 2 fixing springs for ceilings up to 30mm thickness. Possibility for screw mounting offering unlimited ceiling thickness. For B15 fire classification please look at service manual. |
| Connection | Delivered with quick connectors, 2 x Wago Midi (2xQCA) as standard. Optionally with 2 x Ensto NAC (2xQCE). |
| Accessories | Wago or Ensto connectors for supply cables can be delivered as extras. Can be found under accessories. |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
