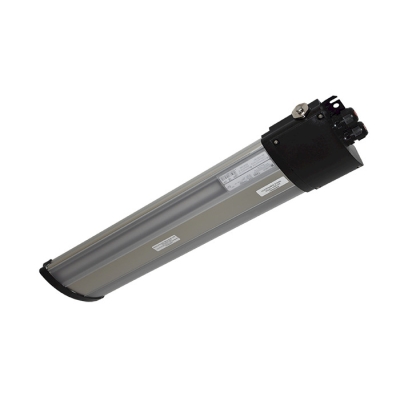

Glamox TX61 LED
TX61’s low building profile along with its slim and elegant design makes it the best solution for Zone 2/22 areas. The robust TX61 watertight LED luminaire is part of a complete range of lightin
Reference: GLX-TX61-LED
Glamox / Marine lighting
Glamox TX61 LED
TX61’s low building profile along with its slim and elegant design makes it the best solution for Zone 2/22 areas. The robust TX61 watertight LED luminaire is part of a complete range of lighting equipment designed for use in hazardous areas. TX61 is designed for Zone 2 and 22 according EN 600
TX61’s low building profile along with its slim and elegant design makes it the best solution for Zone 2/22 areas. The robust TX61 watertight LED luminaire is part of a complete range of lighting equipment designed for use in hazardous areas. TX61 is designed for Zone 2 and 22 according EN 60079. The luminaire is ideally suited for onshore and offshore oil and gas, marine environment and other potentially explo
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Housing | Seawater resistant, anodized aluminium housing with external earthing |
| Lightsource/Optic | Designed in two length with 2200 or 4500 lumen output from the fixture, Led's are covered by softopalic polycarbonate diffuser. |
| Electrical specification | Flexible wiring heat resistant up to 105°C. Versions with through wiringare available. High quality zone 2 driver 220V-240V 50/60Hz |
| Mounting | Mounted to the ceiling or cable trays by screws. Different screwed mounting brackets, shock mounts or triangles are available. |
| Application | For all zone 2 areas in onshore and offshore demanding applications. |
| Design | According to rules of maritime classification societies, additional according to VDE and IEC/EN |
| Ambient temperature (Ta) | Operation from -25ºC up to +50ºC |
| Finish | Grey anodized |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
