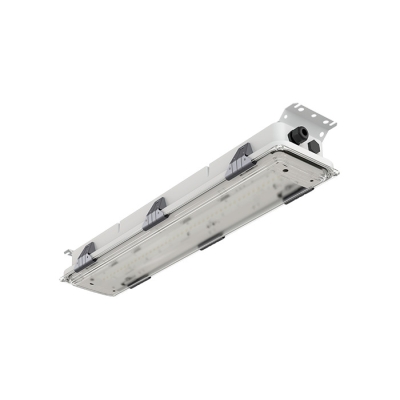

Glamox MIX G2
MIX G2 is a high-quality long-life Category 3-marked luminaire for Ex Zone 2/22. It’s suitable for industrial applications, ships and Energy installations in areas where an explosive atmosphere occurs
Reference: GLX-MIX-G2
Glamox / Marine lighting
Glamox MIX G2
MIX G2 is a high-quality long-life Category 3-marked luminaire for Ex Zone 2/22. It’s suitable for industrial applications, ships and Energy installations in areas where an explosive atmosphere occurs only exceptionally for short periods. The luminaire has a wide variety of installation options, min
MIX G2 is a high-quality long-life Category 3-marked luminaire for Ex Zone 2/22. It’s suitable for industrial applications, ships and Energy installations in areas where an explosive atmosphere occurs only exceptionally for short periods. The luminaire has a wide variety of installation options, minimal maintenance and excellent overall economy. The luminaire housing is manufactured in 316L - acid-proof stainless ste
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Light Source | 2500 - 7500 lumen out Colour temperature 4000 K, CRI Ra 80, MacAdams 3 |
| Driver | Fixed output (HF) and DALI dimmable (10-100%). Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C. |
| Body material and colour | Housing in aluminium/zinc treated steel or acid-proof steel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel. The diffuser is made of impact-proof frosted polycarbonate with a |
| Mounting | The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridg |
| Cable entry | 1-4 x cable glands: M20 polyamide (cable Ø6-12 mm) M20 nickel plated brass (cable Ø4-12 mm) M25 polyamide (cable Ø11-17 mm) M25 nickel plated brass (cable Ø10-18 mm) |
| Connection | 5 pole 6 mm² screw terminal block. Variants with 5 x 2.5 mm² through wiring. |
| Emergency system | Emergency solution for 1.5 or 3 hour duration is available. Fixed external battery box to achieve optimal working conditions. |
| Accessories | Suspension kits. |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
