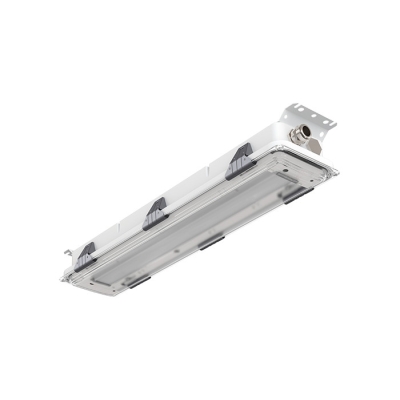

Glamox MAX G2

Name: Glamox MAX G2
Brand: Citimarine Store
SKU: GLX-MAX-G2

MAX G2 is a high-quality long-life Category 2-marked luminaire for Ex Zone 1/21 and Ex Zone 2/22. It’s suitable for industrial applications, ships and oil installations in areas where an explosi

Reference: GLX-MAX-G2

Glamox / Marine lighting

Glamox MAX G2

MAX G2 is a high-quality long-life Category 2-marked luminaire for Ex Zone 1/21 and Ex Zone 2/22. It’s suitable for industrial applications, ships and oil installations in areas where an explosive atmosphere is likely to occur occasionally in normal operation. The luminaire has a wide variety

Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.

Specifications

Light Source	2500 - 8500 lumen out Color temperature 4000K as Standard,. 3000K , 5000K or 6000 K as options , CRI Ra 80, MacAdams 3
Driver	Fixed output (HF) or DALI2 driver. Dali2 is dimmable .
Mounting	The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridg
Cable entry	1-4 x cable glands: M20 polyamide (cable Ø6-12 mm) M20 nickel plated brass (cable Ø4-12 mm) M25 polyamide (cable Ø11-17 mm) M25 nickel plated brass (cable Ø10-18 mm)
Connection	6 pole 6 mm² screw terminal block. 6 x 2.5 mm² through wiring (TW). 2 pole 4 mm² push in terminal block for DALI termination
Emergency system	Emergency solution for 1.5 or 3 hour duration is available. Fixed external battery box to achieve optimal working conditions.
Accessories	Suspension kits.
Brand	Glamox
