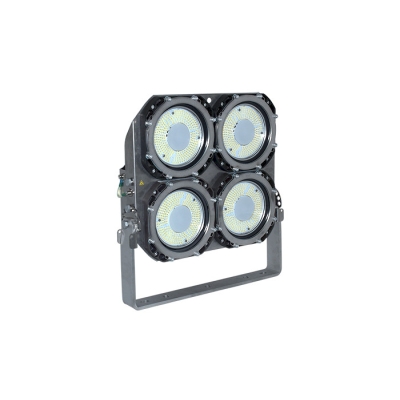

Glamox FX60 LED
The Ex de LED floodlights are designed for a long lifetime and high efficiency without any maintenance. The Ex d module of the floodlight has no flame path and the connection box is Ex e approved. LED
Reference: GLX-FX60-LED
Glamox / Marine lighting
Glamox FX60 LED
The Ex de LED floodlights are designed for a long lifetime and high efficiency without any maintenance. The Ex d module of the floodlight has no flame path and the connection box is Ex e approved. LED gives instant light and the floodlight is immune against voltage drops. The special design of seawa
The Ex de LED floodlights are designed for a long lifetime and high efficiency without any maintenance. The Ex d module of the floodlight has no flame path and the connection box is Ex e approved. LED gives instant light and the floodlight is immune against voltage drops. The special design of seawater resistant aluminium anodized module housing secures an excellent cooling. Mounting frame and bracket are made of sta
Supplied by Citimarine Store as part of the Glamox marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Connection | As standard for external connection the FX60 comes with 2 cable glands M25 Ex e brass nickel plated (others on request). The glands are for cable diameter from 10 to 17mm, Ex e external connection box at the back of the |
| Mounting | Adjustable bracket in stainless steel AISI 316 unpowdered 8x50mm as standard.Holeplates have position locks both sides for 2 to 4 module version as standard. |
| Light Source | Array of LED with 4500lm output per module, with extreme long rated lifetime of 100.000 hours at ambient temperature of 45°C. |
| Electrical specification | Integrated IC driver available in 120Vac or 230Vac or 254Vac 50/60Hz, low power consumption of 40W per module only. No inrush current due to the IC driver technology. The modules are connected in the external connection |
| Optic | The FX60 floodlight is available in wide, medium or narrow beam characteristic, with clear safety glass. The floodlight is available with 1 to 4 modules corresponding 4500lm to 18000lm system output in 5000k light colour |
| Finish | Modules are anodized |
| Housing | Modules out of di-casting, seawater resistant aluminium, frame and bracket out of stainless steel AISI 316. |
| Ambient temperature (Ta) | Operation temperature from -50°C up to +55°C |
| Brand | Glamox |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
