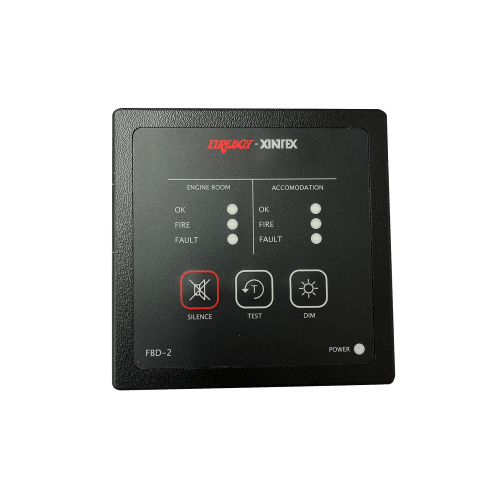

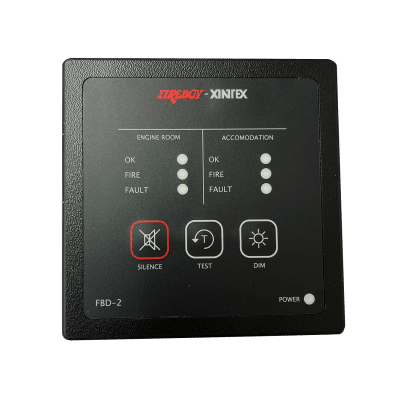

Fireboy FBD-2 Two Zone Detection & Alarm Panel
Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)
The 3-5” square membrane style display panel features colored LED’s indicating Power and Status.
DISCONTINUED - CLICK FOR REPLACEMENT
Reference: FBD-2
$45.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Fireboy FBD-2 Two Zone Detection & Alarm Panel
Features:
- Visual and audible indication of a fire or fault
- Water Resistant Display
- Includes 85 dB horn
- Supply Voltage: 12/24V DC
- Voltage and EMI protected.
- Reverse polarity protected.
Technical Specifications of FBD-2:
| Description | Specification |
| Supply voltage 9-32V DC Zone loop volta | 9-32V DC |
| Zone loop voltage | 24V DC (regardless of input voltage) |
| Minimum alarm current | 15mA |
| Maximum current per zone | 400mA |
| Maximum sensors per zone | 8 |
| EOL resistor | 5.6kΩ |
| Potential free transistor output (Fault, Alarm) | 50V max |
| Relay output (Buzzer) | 2A |
Detectors:
