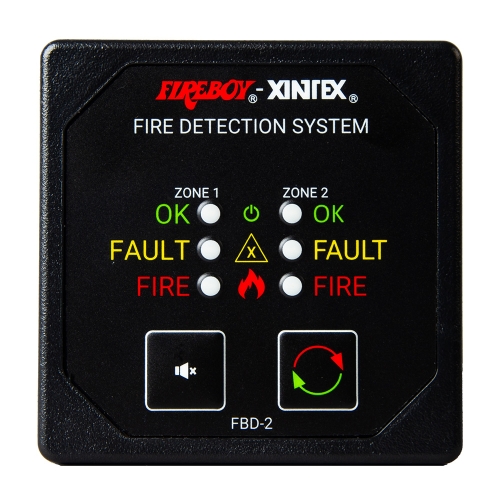

Fireboy Xintex FBD-2-R Two Zone Fire Detection & Alarm Panel - 2-5/8" Display - 12/24V DC
Fireboy FBD-2-R Two Zone Fire Detection & Alarm Panel - 2-5/8" Display - 12/24V DC. Marine fire alarm system. Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)
Reference: FBD-2-R
$560.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Fireboy Xintex FBD-2-R Two Zone Detection & Alarm Panel - 2-5/8" Display - 12/24V DC
Two Zone Marine Fire Alarm System - 2-5/8" Display - 12/24V DC. Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)
Features of Fireboy FBD-2-R
Visual and audible indications of a fire or fault
Water resistant display
Voltage and EMI protected
Reverse polarity protected
Technical Specifications
| Supply Voltage | 9-32V DC |
| Zone Loop Voltage | 24V DC (regardless of input voltage) |
| Minimum Alarm Current | 15mA |
| Maximum Current Per Zone | 400mA |
| Maximum Sensors Per Zone | 8 |
| EOL Resistor | 5.6kΩ |
| Potential Free Transistor Output (Fault, Alarm) | 50V max |
| Relay Output (Buzzer) | 2A |
