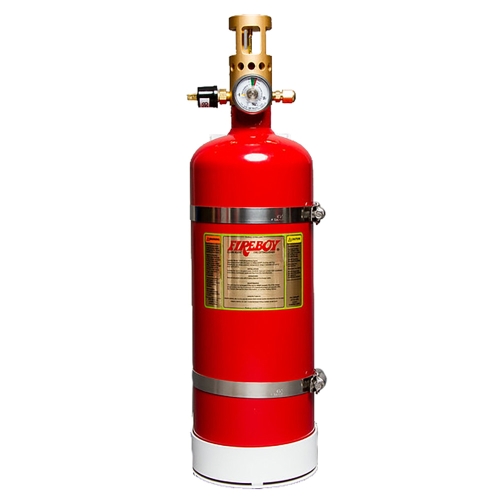

Fireboy-Xintex CG0225NVC-F Automatic Marine Fire Extinguisher

Features of CG0225NVC-F:

• Discharge is automatic at 175 degrees F (79 degrees C) for round-the-clock engine compartment fire protection
• Total flooding of the engine compartment in less than 10 seconds for fast smothering of the fire
• FK-5-1-12 clean extinguishing agent leaves no harmful residue to clean up
• Easy to read color coded pressure gauge on the cylinder also identifies the “charged/discharged” status
• Coverage from 25 ft3 to 1,800 ft3 in a broad array of increments provides maximum coverage at the lowest cost
• Integrated shelf bracket mounting system
• Up to 4,000 ft3 available with GA FK-5-1-12 Systems
• Rugged industrial-designed pressure gauge ensures trouble-free performance
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 clean extinguishing agent is approved for marine use worldwide (EPA SNAP, European)
• Approved for Class B fires in engine compartments, machinery spaces, and similar industrial applications
• Many marine insurance providers offer a discount to boaters who install a fixed fire extinguisher system (contact your insurer for details)

Fireboy CG Series Fire Extinguisher

Automatic discharge only (@ 175 degrees F / 79 degrees C)

Engine compartments up to 1,000 ft3 (28.3 m3)

Heavy-duty mounting bracket

Helm display

Specifications

Volume Protected: 225ft3 / 6.4 m3

Diameter: 6.3 in. / 160mm

Total Height: 18.7 in. / 476mm

Agent Weight: 12.1 lbs. / 5.5 kgs

Shipping Weight: 32 lbs. / 14.3 kgs

System Pressure: 360 psi @70 degrees F
