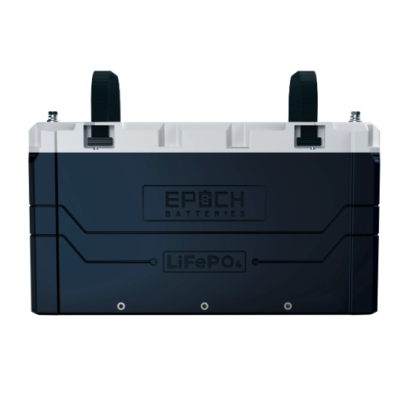

Epoch 24V 230Ah Marine Lithium Battery – V2 Elite LiFePO4 | Heated, Bluetooth & Victron Compatible
Epoch 24V 230Ah LiFePO4 Marine Battery – Heated, Bluetooth, Victron Comms, IP67 waterproof, 3500+ cycles & 11-year warranty. Reliable lithium power.
Reference: C24230A
In Stock: 5
$2,199.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
The Epoch 24V 230Ah V2 Elite Series LiFePO4 Battery sets a new standard in marine and off-grid energy storage. Built with advanced lithium iron phosphate (LiFePO4) technology, this battery delivers exceptional performance, safety, and scalability — ideal for boats, RVs, solar systems, and professional energy installations.
The V2 Elite upgrade introduces enhanced Victron communications, allowing seamless CANbus integration for real-time data and intelligent energy management. The system now supports up to 16 batteries in parallel, providing scalable storage for larger power demands.
With IP67 waterproof construction, self-heating for sub-zero charging, and Bluetooth connectivity, the 24V 230Ah Elite ensures reliable power in all weather conditions. Each unit includes an advanced BMS, mountable ON/OFF switch, and external battery gauge for easy control and monitoring.
Certified components, over-the-air firmware updates, and improved app functionality make this the most advanced marine-grade lithium battery in its class. Backed by an 11-year manufacturer warranty, it’s a long-term power solution for serious boaters and off-grid professionals.
Key Features
-
24V 230Ah LiFePO4 battery with internal heating system
-
IP67 rated – fully dustproof and waterproof (submersible up to 1 meter)
-
Integrated Bluetooth monitoring via iOS and Android apps
-
CANbus communication for direct Victron system integration
-
Supports up to 16 batteries in parallel for large-scale energy setups
-
Advanced BMS with OTA firmware updates and complete system protection
-
3500+ charge cycles with 100% depth of discharge capability
-
Certified components for safety and quality (UL, IEC, RoHS)
-
External mountable ON/OFF switch and battery gauge
-
Maintenance-free and suitable for marine, RV, and off-grid installations
| Epoch 24V 230Ah V2 Elite Series – Technical Specifications | |
|---|---|
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Form Factor | Group 8D |
| Dimensions (L × W × H) | 20.75" × 8.5" × 12" |
| Weight | 97 lbs |
| Nominal Voltage | 25.6V |
| Capacity | 230Ah |
| Cell Configuration | 8S1P |
| Max Charge Voltage | 29.2V |
| Operating Voltage Range | 20.0V – 29.2V |
| Max Continuous Discharge | 230A |
| Peak Discharge | 500A (30 seconds) |
| Max Continuous Charge | 230A (400A for 5 seconds) |
| Parallel Configuration | Up to 16 batteries |
| Series Configuration | Up to 2 batteries |
| Cycle Life | 3500+ cycles (typical) |
| Ingress Protection | IP67 (dust-tight and waterproof) |
| Heating Feature | Internal heater for charging below 0°C |
| Bluetooth | iOS and Android app with all-battery dashboard |
| Victron Compatibility | CANbus integration, DVCC control, 500 kbps communication |
| BMS Protections | Over/under-voltage, over-temperature, over-current, short-circuit |
| Charge Temperature | -20°C to 55°C (-4°F to 131°F) with self-heating |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | 0°C to 35°C (32°F to 95°F) |
| Certifications | UL60691, UL1642, UL1973, U9540A, IEC 62619:2017, RoHS |
| Warranty | 11 years manufacturer warranty |
Recommended Charging Settings (Non-Victron Systems)
|
Setting |
Value |
|---|---|
|
Absorption Voltage |
28.4V |
|
Absorption Time |
15 minutes per battery |
|
Float Voltage |
27.0V |
|
Equalization |
Off |
|
Temperature Compensation |
Disabled |
Victron System Integration Summary
-
Connect via CANbus using RJ45 cables (master-to-slave chaining).
-
Use Cerbo GX or Ekrano GX (set VE-CAN port to 500 kbps).
-
Enable DVCC and set controlling BMS to Epoch.
-
System automatically cycles to 28.4V absorption and 27.0V float.
-
Manual configuration recommended for backup if CAN communication is lost.
