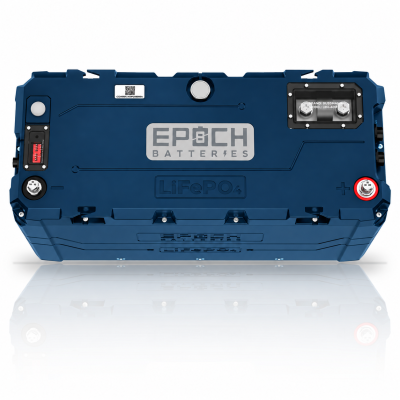

Epoch 24V 230Ah V2-T Elite Marine Lithium Battery – Heated, Bluetooth & Victron CANbus LiFePO4
Epoch V2-T Elite 24V 230Ah (5.89kWh) heated LiFePO4 battery with Victron CANbus/DVCC, Bluetooth, external battery gauge, Class-T fuse, IP67 case and 11-year warranty.
Reference: C24230A-A
In Stock: 8
$2,599.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
The Epoch 24V 230Ah V2-T Elite Series LiFePO4 Battery delivers 5.89kWh of 24V storage in an IP67-rated Group 8D case, making it a clean upgrade for 24V marine house banks, bow thruster support, trolling motors and off-grid builds. The V2-T adds an external power button and battery gauge.
It communicates with Victron GX devices over CANbus for DVCC charge control, offers Bluetooth monitoring and internal heating, and includes a user-serviceable Eaton Class-T fuse. Rated for 115A continuous charge and discharge (250A peak for 10 seconds), with up to 2 batteries in series or 16 in parallel.
Technical Specifications
| Nominal voltage | 25.6V |
| Capacity | 230Ah |
| Stored energy | 5.89kWh |
| Chemistry / cells | LiFePO4, 8S1P |
| Max continuous discharge | 115A |
| Peak discharge | 250A (10 s) |
| Max continuous charge | 115A |
| Series / parallel | Up to 2S or 16P (no series-parallel) |
| Communication | CANbus – Victron DVCC via GX |
| Bluetooth monitoring | Yes – Epoch app |
| External controls | Power button + battery gauge |
| Fuse | Eaton Class-T, user-serviceable |
| Internal heating | Yes |
| Enclosure rating | IP67 |
| Group size | BCI Group 8D |
| Terminals | M8 bolts |
| Dimensions (L × W × H) | 20.86 × 8.65 × 12.06 in |
| Weight | 98.9 lb (45.9 kg) |
| Cycle life | 4,000+ cycles |
| Warranty | 11-year |
Installation & Charging
Use a lithium (LiFePO4) compatible charger, inverter/charger, solar controller or DC-DC charger programmed to Epoch's recommended settings, and do not use lead-acid equalization modes. Always confirm compartment dimensions, cable and fuse sizing and charging-system compatibility before installation.
Warranty & Support
Backed by Epoch Batteries' manufacturer warranty and US-based technical support. Epoch is a veteran-owned company; batteries are designed and engineered in the USA.
