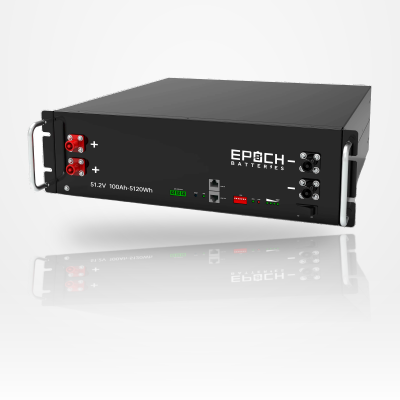

Epoch 48V 100Ah Server Rack Lithium Battery – Self-Heating 3U LiFePO4 with CAN/RS485 (5.12kWh)
Epoch 48V 100Ah (5.12kWh) self-heating LiFePO4 3U server rack battery with CAN/RS485 inverter communication, up to 32 in parallel, 6,000+ cycles and 11-year warranty. IP20 – indoor use.
Reference: SR48100H
In Stock: 8
$1,499.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
The Epoch 48V 100Ah Self-Heating Server Rack Battery stores 5.12kWh in a standard 3U, 19-inch rack-mount chassis for home energy storage, solar backup, off-grid power walls and protected 48V systems. Batteries stack in a rack or cabinet and expand up to 32 in parallel.
CAN and RS485 ports provide closed-loop communication with inverters from Victron, Sol-Ark, Growatt, SMA, Deye, Schneider and others. Internal heating supports charging in cold, unheated spaces, and the LiFePO4 cells are rated for 6,000+ cycles. The IP20 metal enclosure is for dry indoor installations only.
Technical Specifications
| Nominal voltage | 51.2V |
| Capacity | 100Ah |
| Stored energy | 5.12kWh (4.92kWh usable) |
| Chemistry / cells | LiFePO4, 16S1P |
| Max continuous discharge | 100A |
| Peak discharge | 119A (5 min) / 200A (15 s) |
| Max charge current | 70A |
| Charge voltage | 56.0V |
| Series / parallel | Parallel only – up to 32 |
| Communication | CAN / RS485 closed-loop |
| Internal heating | Yes |
| Form factor | 3U, 19-inch rack |
| Enclosure rating | IP20 – indoor only |
| Dimensions | 17.4 × 18.1 × 5.2 in |
| Weight | 101 lb (46 kg) |
| Cycle life | 6,000+ cycles |
| Warranty | 11-year |
Installation & Charging
Use a lithium (LiFePO4) compatible charger, inverter/charger, solar controller or DC-DC charger programmed to Epoch's recommended settings, and do not use lead-acid equalization modes. Always confirm compartment dimensions, cable and fuse sizing and charging-system compatibility before installation.
Warranty & Support
Backed by Epoch Batteries' manufacturer warranty and US-based technical support. Epoch is a veteran-owned company; batteries are designed and engineered in the USA.
