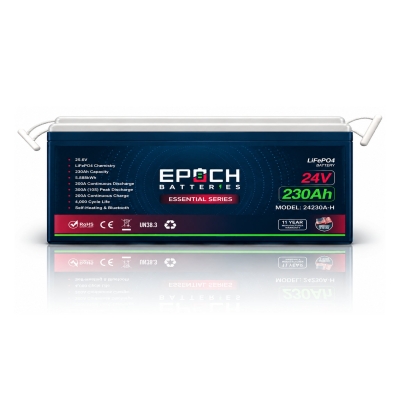

Epoch 24V 230Ah Marine Lithium Battery – Essential Series Heated & Bluetooth LiFePO4 Deep Cycle
Epoch 24V 230Ah (5.89kWh) heated LiFePO4 deep-cycle battery with Bluetooth, 200A BMS, IP54 case, Group 8D size, 4,000+ cycles and 11-year warranty.
Reference: 24230A-H
In Stock: 8
$1,599.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
The Epoch 24V 230Ah Essential Series LiFePO4 Battery is a native 24V deep-cycle battery with 5.89kWh of storage – one battery instead of two 12V batteries wired in series. It suits 24V trolling motors, marine house banks, RVs and solar systems.
The 200A continuous BMS (300A peak for 10 seconds) supports roughly 5,000W of DC output for large 24V inverters and high-draw equipment. Internal heating allows charging in freezing temperatures, and the Epoch Li-Ion app shows real-time battery data over Bluetooth. The IP54 case is dust-protected and splash-resistant for protected marine compartments.
Technical Specifications
| Nominal voltage | 25.6V |
| Capacity | 230Ah |
| Stored energy | 5.89kWh |
| Chemistry / cells | LiFePO4, 8S1P |
| Max continuous discharge | 200A |
| Peak discharge | 300A (10 s) |
| Max continuous charge | 200A |
| Recommended charge current | 115A (0.5C) |
| Bulk / absorption voltage | 28.4V – 28.8V |
| Series / parallel | Parallel only (series not approved) |
| Internal heating | Yes – charging down to -4°F (-20°C) |
| Bluetooth monitoring | Yes – Epoch Li-Ion app |
| Enclosure rating | IP54 |
| Group size | BCI Group 8D |
| Terminals | M8 female |
| Dimensions (L × W × H) | 20.55 × 9.45 × 8.60 in |
| Weight | 84 lb (38.1 kg) |
| Cycle life | 4,000+ cycles |
| Warranty | 11-year limited |
Installation & Charging
Use a lithium (LiFePO4) compatible charger, inverter/charger, solar controller or DC-DC charger programmed to Epoch's recommended settings, and do not use lead-acid equalization modes. Always confirm compartment dimensions, cable and fuse sizing and charging-system compatibility before installation.
Warranty & Support
Backed by Epoch Batteries' manufacturer warranty and US-based technical support. Epoch is a veteran-owned company; batteries are designed and engineered in the USA.
