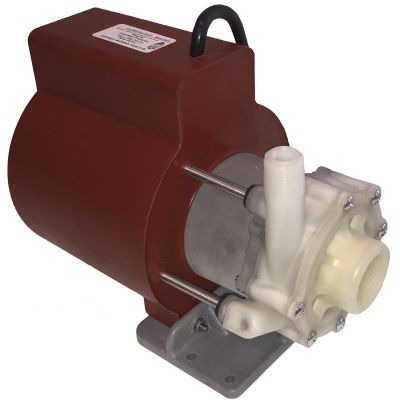

PML1000C Submersible 14.5 GPM 230V
NEW Dometic/Cruisair PML1000C Seawater Pump - 1000 GPH @ 3' - 230/60 Hz - HP: 1/8. Port Size: 1” FPT x 1/2 MPT. The Dometic PML1000C pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort.
March Pumps Reference Number: LC-5C-MD. (Click Here to View)
Dometic MFG#: 225500288
Reference: 225500288
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
PML1000C Seawater Pump - 1000 GPH - 230 V - 60 Hz
The Dometic PML250 pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. There is no seal wear, power-robbing friction, or leakage through the seal.
The impeller and drive magnets are strong, permanent ceramic types, which prevent slippage. This ensures that full motor power is converted into pumping power. Centrifugal pumps require a flooded inlet and should be mounted below the waterline. This pump boasts an exclusive marine-grade base that is capable of withstanding harsh marine conditions. Ensure your onboard comfort.
Key Benefits
- Magnetic-drive impeller means no seal to wear, leak, or repair
- Efficient motor with low power consumption
- Exclusive marine-grade base can handle harsh marine conditions
- Liquid-cooled (submersible)
- All components in contact with water are plastic, ceramic, or stainless steel
- 6 ft. (1.8 m) power cord is standard
Technical Specifications
| Model | PML1000C |
| Part Number | 225500288 |
| Input Voltage (AC) | 230 V |
| Input Frequency | 60 Hz |
| Flow Rate | 1000 GPH |
| Depth | 9.85" |
| Height | 7.14" |
| Width | 5.63" |
| Net Weight | 9 lbs |
Performance Curve
Drawings
