PML250C - 230V / 50-60 Hz / 3 GPM
NEW Dometic/Cruisair PML250C Seawater Pump - 250 GPH @ 3' - 230V / 50-60 Hz / 1 Phase - HP: 1/35. Port Size: 3/4” NPT x 1/4" NPT. The Dometic PML250C pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort.
March Pumps Reference Number: LC-2CP-MD. (Click Here to View)
MFG#: 225500014
Reference: 225500014
$319.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

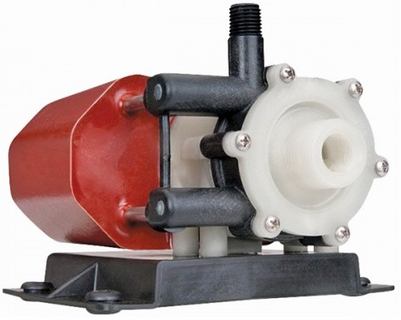

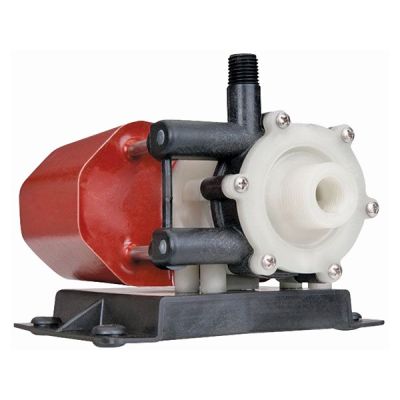

PML250C Seawater Pump - 250 GPH - 230 V - 50/60 Hz
The Dometic PML250C pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. There is no seal wear, power-robbing friction, or leakage through the seal.
The impeller and drive magnets are strong, permanent ceramic types, which prevent slippage. This ensures that full motor power is converted into pumping power. Centrifugal pumps require a flooded inlet and should be mounted below the waterline. This pump boasts an exclusive marine-grade base that is capable of withstanding harsh marine conditions. Ensure your onboard comfort.
Key Benefits
- Magnetic-drive impeller means no seal to wear, leak, or repair
- Efficient motor with low power consumption
- Exclusive marine-grade base can handle harsh marine conditions
- Liquid-cooled (submersible)
- All components in contact with water are plastic, ceramic, or stainless steel
- 6 ft. (1.8 m) power cord is standard
Technical Specifications
| Model | PML250C |
| Part Number | 225500014 |
| Input Voltage (AC) | 230 V |
| Max A/C Capacity | 12,000 BTU's |
| Input Frequency | 50/60 Hz |
| Inlet x Outlet | 3/4" NPT x 1/4" NPT |
| Flow Rate | 3 GPM |
| Depth | 6.20 in / 157 mm |
| Height | 4.70 in / 119 mm |
| Width | 5.60 in / 142 mm |
| Net Weight | 5.0 lbs / 2.3 kg |
Performance Curve

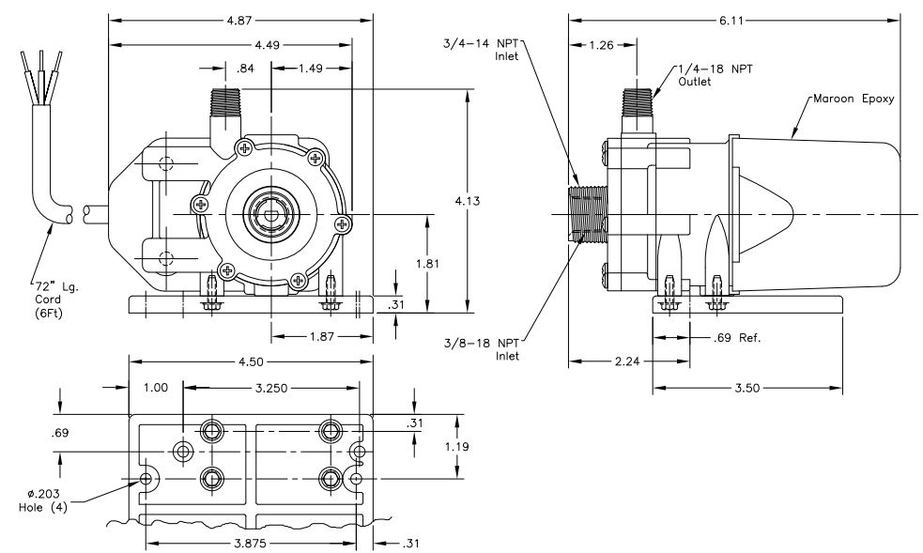

Drawings
