Dometic Replacements OEM Pumps

NEW PML250 Seawater Pump - 250 GPH (946 LPH) @ 3' - 115/ 60 Hz - HP: 1/35. Port Size: 3/4” NPT x 1/4" NPT. The PML250 pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort. March Pumps Reference Number:   LC-2CP-MD (Click Here to View)                  MFG#: 225500004

The Dometic Reliable, heavy-duty centrifugal pump provides a steady flow of cooling water through the air conditioning system. A wide range of pumps and motors are available for use in different power environments. 230V, 50/60Hz.  MFG#:  225500069 March Pumps Part Number:   AC-5C-MD   (Click Here to View)

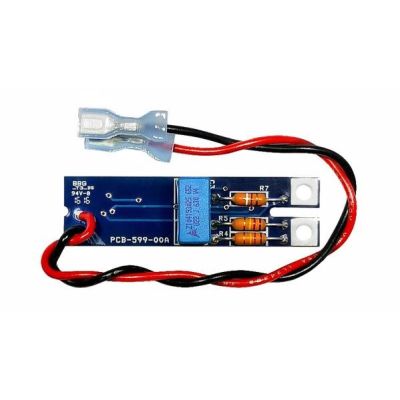

The MA Replacement Trigger is a newly-manufactured, footprint-compatible, and functionally-compatible replacement trigger for use in the popular pump relay boxes for marine applications. The MA Replacement Trigger is dual-voltage and therefore you only need one part to work in both 115V and 230V applications. This trigger is used in the pump relay box. It is compatible with Dometic TR-115 and TR-230 Triggers.  5-7 DAYS PROCESSING TIME Part Number:  ASY-599-X01 / TR 115 - TR 230

This Pump Relay board (PRP) (BOARD ONLY, NOT METAL BOX) allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Separate, fully-isolated pump trigger inputs accept either 115VAC/60Hz or 230VAC/50-60Hz. The pump power source and pump output is also isolated and can be either 115VAC or 230VAC/50-60Hz.   Triggers not needed, included in board.

The 2-station Pump Relay Box allows control of a common seawater pump between multiple cabins or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Fully-isolated pump trigger inputs accept either 115V/60Hz or 230V/50Hz. The pump power source and pump output is also isolated and can be either 115V or 230V. Triggers not needed, integrated into the board. Part Number: ASY-110-X01

The 6-station Pump Relay Box allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Fully-isolated pump trigger inputs accept either 115V/60Hz or 230V/50Hz. The pump power source and pump output is also isolated and can be either 115V or 230V .  Triggers not needed, integrated into the board. Part Number: ASY-111-X01

A-548, Replacement To-3 Triac.  This triac triggers the pumps when the A/C unit needs them on.  This Trac is located inside of the Pump relay Box.   90-day warranty*.   Peak Voltage: 6 00V, Amperage: 35A. Part Number: 758000006 / TG35F 40

NEW Dometic/Cruisair PML250C Seawater Pump - 250 GPH @ 3' - 230V / 50-60 Hz / 1 Phase - HP: 1/35. Port Size: 3/4” NPT x 1/4" NPT. The Dometic PML250C pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort. March Pumps Reference Number:   LC-2CP-MD. (Click Here to View)                    MFG#: 225500014

NEW Dometic/Cruisair PML500 Seawater Pump - 490 GPH @ - 115V / 60 Hz - HP: 1/20. The Dometic PML500 pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort. March Pumps Reference Number:   LC-3CP-MD. (Click Here to View)                      MFG#:  225500005

NEW Dometic / Cruisair PML500C Seawater Pump - 490 GPH @ 3' - 230V / 50-60 Hz / 1 Ph - HP: 1/20. Port Size: 3/4" NPT x 1/2" NPT. The Dometic PML500C pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort. March Pumps Reference Number:   LC-3CP-MD. (Click Here to View)                   Dometic MFG#:  225500016

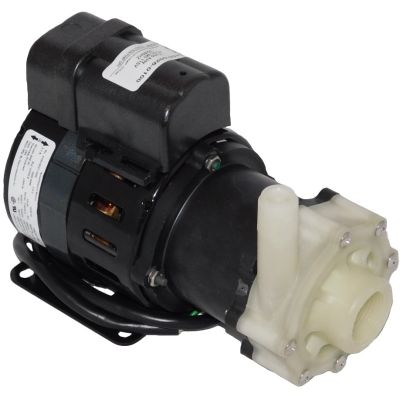

The Dometic PMA1000 pump can support total air handler capacities from 16,000 to 42,000 BTU/h and ensures top cooling performance.  The Dometic Reliable, the heavy-duty centrifugal pump provides a steady flow of cooling water through the air conditioning system.  Pump packages reduce the installation time of chilled water systems by combining several necessary components in one convenient package. Part Number:  225500065 March Pumps Part Number:  AC -5C-MD   (Click Here to View)

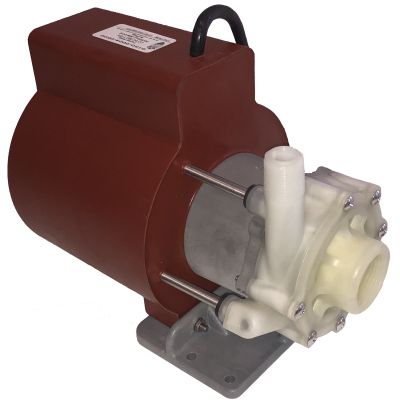

NEW Dometic/Cruisair PML1000C Seawater Pump - 1000 GPH @ 3' - 230/60 Hz - HP: 1/8. Port Size: 1” FPT x 1/2 MPT. The Dometic PML1000C pump ensures a top cooling performance from your air conditioner. It has a liquid-cooled motor and can be run in open air or submerged. The proven magnetic drive eliminates the troublesome mechanical shaft seal. Ensure your onboard comfort. March Pumps Reference Number:   LC-5C-MD.  (Click Here to View)                      Dometic MFG#:  225500288
