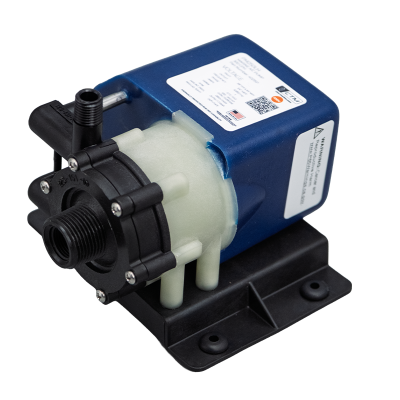

CTM - PM250L - 300 GPH - 115V - Submersible A/C Pump
CTM PM250L 115V is an American submersible seal-less centrifugal magnetic drive pump. 115V - 50/60 Hz - 5GPM (300 GPH) It might be used submerged or not submerged. 3/8" FPT and 3/4" MPT Inlet, 1/4" MPT Outlet. Commonly used for marine air conditioning and fountains.
.png)
Reference: 40115P
Available Online: 39
Ft. Lauderdale: 0
Miami: 39
$294.99
Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Earn 32 Citimarine Points with this Purchase!
By buying this product you can collect up to 32 Citimarine points. Your cart will total 32 points that will be converted into a voucher of $3.20 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
CTM - PM250L - 300 GPH - 115V - Submersible A/C Pump
CTM PM250L is an American submersible seal-less centrifugal magnetic drive pump. 115V - 50/60 Hz - 5GPM (300 GPH) It might be used submerged or not submerged. 3/8" FPT and 3/4" MPT Inlet, 1/4" MPT Outlet. Commonly used for marine air conditioning and fountains.
Operation
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact CTM.
Electrical
Pumps are U.L. Recognized under File No. E80954. U.L. Recognition On Pumps Is For Water Only.
Models PM250L & PM250LH 115 V & 230 V have a 6 ft (1.8 m) cord.
Specifications
Inlet - Outlet: 3/8” FPT & 3/4” MPT - 1/4” MPT
Max Internal Pressure: 25 psi (1.7bar)
Max Liquid Temperature: 130 °F (54 °C)
Dimensions (inches): 4.13 x 4.87 x 6.11
Packed Weight (lbs): 5.20
Dimensions
