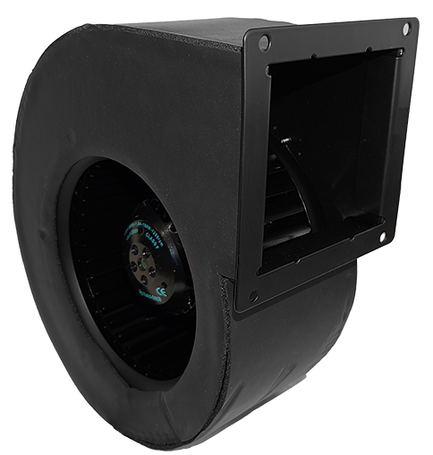

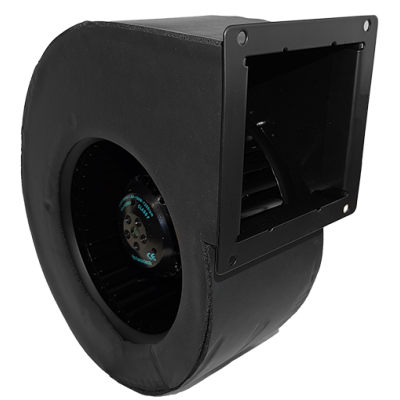

CTM Blower (Turbo) Assembly For Marine A/C Units (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) - 6K to 8K BTU's - 115V
CTM Blower assembly for Marine Self-Contained air conditioning units. Works with units from 6,000 to 8,000 BTUs - 115V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units 90-day warranty.
Reference: 40012B
Available Online: 103
Ft. Lauderdale: 0
Miami: 103
Regular Price: $324.99
CPlus Price: $308.74
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Earn 35 Citimarine Points with this Purchase!
By buying this product you can collect up to 35 Citimarine points. Your cart will total 35 points that will be converted into a voucher of $3.50 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
CTM Turbo Blower Assembly For Self-Contained Units, 6k to 8k BTU's - 115V
Works with units from 6,000 to 8,000 BTU's - 115V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units. 90-day warranty.
Blower Connection Diagram
.png)
Technical Specifications 40012B
| Voltage | 115 V |
| Phase | 1 Ph |
| Frequency | 60 Hz |
| Capacitor | 6uf |
| Airflow | 271 CFM |
| Speed | 1980 RPM |
| Power | 180 W |
| Current Max | 1.57 A |
| Noise | 70 dB |
| Working Temperature | -40 + 65 °C |
| Motor Technology | AC |
