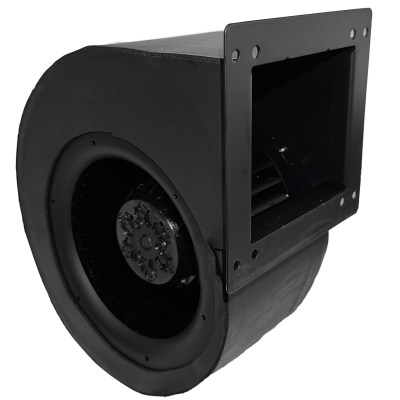

CTM Blower (Turbo) Assembly For Marine A/C Units (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) - 14K to 16K BTU's - 115V
CTM Blower assembly for Marine Self-Contained air conditioning units. Works with units from 14,000 to 16,000 BTU's - 115V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) units. 90-day warranty.
Part Number: 40014B
Reference: 40014B
In Stock: 49
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
CTM Turbo Blower Assembly For Self-Contained Units, 14k to 16k BTU's - 115V
Works with units from 14,000 to 16,000 BTU's - 115V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) units. 90-day warranty.
Blower Connection Diagram
.png)
Technical Specifications
| Voltage | 115 V |
| Phase | 1 Ph |
| Frequency | 60 Hz |
| Airflow | 453 CFM |
| Speed | 1400 RPM |
| Power | 185 W |
| Current Max | 1.6 A |
| Noise | 72 dB |
| Working Temperature | -40 + 65 C |
| Motor Technology | AC |
Dimensions
Compatible with the following units
| Model | Part Number |
| CTM CT-16 115V 50/60HZ | 24101C |
| ECD16K/2-HV 410A KIT, 115V 50/60Hz | 207500316 |
| DTU16-1161-410A | 205160160 |
| DTU16-1161-410A 7MR | 205160161 |
| DTG16-1171-410A 7MR | 205160174 |
| STQ16-410A 115V 60HZ ONLY | 205561750 |
| STX16-410A 115V 60HZ ONLY | 205561755 |
| VTD16K-410A 115V 60HZ ONLY | 205561700 |
Other Models
