Webasto C27 M BlueCool C-Series Chiller - 27,000 BTU's - 230V

Webasto C27 M BlueCool C-Series Chiller - 27,000 BTU's - 230V

Webasto C27 M BlueCool C-Series Chiller - 27,000 BTU's - 230V

Customer ratings and reviews

Webasto C27 M BlueCool C-Series Marine Chiller A/C Unit - 27,000 BTU's - 230V - R410A. Whenever three or more independent areas in a yacht need to be air-conditioned, a central chiller system is the right choice. The system features one central control unit and a separate control panel for each cabin. For smaller chiller systems up to 108,000 BTU/h the BlueCool C-Series is the perfect choice. 2-Year Warranty + Free US Shipping!

Webasto

WBCL1205003D

$4,190.00

Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 419 points that will be converted into a of $41.90 towards your next purchase! Must be to collect points.

More info

Webasto BlueCool C-Series Marine Chiller System - 27,000 BTU's - 230V - R410A
Webasto C27 M BlueCool C-Series Chiller Unit 27,000 btus
Chiller systems are suitable for boats with several cabins. Whenever three or more independent areas in a yacht need to be air-conditioned, a central chiller system is the right choice. The chiller unit is typically placed in the engine room, providing chilled water / glycol to all cabins via the chilled water circuit. One or several air handlers are fitted in each cabin providing the required cooling capacities to the rooms. The system offers one control for the unit itself as well as separate panels for each cabin.

The new C-Series offers a unique new feature with the BlueCool Expert Tool connected via a single USB cable and a PC. On site servicing and remote assistance are now a child’s play.

Part Number: WBCL1205003D
Replaces Part Number:
WBCL1205003C

Key Features

  • BlueCool Expert Tool - allows remote access to core systems operations, parameter settings and troubleshooting diagnostics from anywhere in the world with USB cable and Wi-Fi signal
  • Improved performance and up to 15% higher efficiency
  • Continuous cooling capacity even in tropical conditions
  • Improved footprint size for ease of installation
  • Feature rich electronics for easy system control with unique adaptive hardware for potential add-ons and diagnosis via USB cable
  • Optional CAN-Bus for optimized adaptation to boat systems
  • Compressor noise is reduced by up to 25%
  • Easy sea water and chilled water connections at one side
  • Strong stainless steel tray and condensate drain
  • Cooling and heating via reverse cycle function as a standard
  • High quality epoxy paint protection
  • 1, 2, 3 or 4 stage systems for variable load demands

Technical Specifications

Part Number WBCL1205003D
Cooling Capacity (BTU/h) 27,000
Heating via reverse cycle integrated Yes
Voltage (V) 230
Frequency (Hz) 50 / 60
Current draw running (A) 8.6 - 9.2
Locked Rotor Amperage LRA (A) comp. only 54
Max. Circuit Breaker (A) 20
Chilled Water Connection (inch / mm) 1 / 25
Seawater Connection (inch / mm) 3/4 / 19
Weight (lbs / kg) 88 / 40

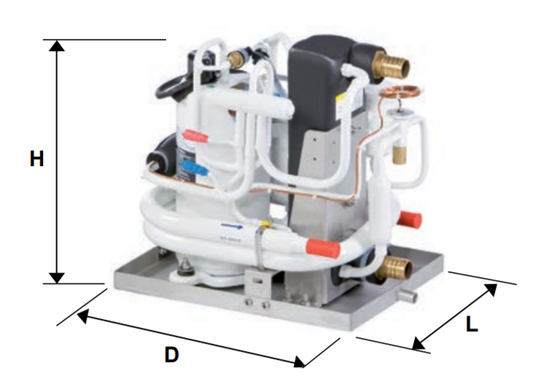

Dimensions

Width (in / mm) 11.4 / 290
Webasto BlueCool C-Series Chiller
Lenght (in / mm) 15.2 / 385
Height (in / mm) 13.8 / 350


Webasto

About Webasto - Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
