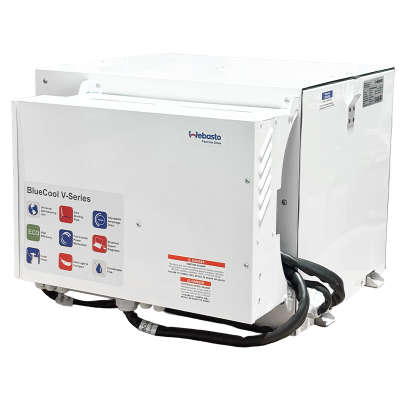

Webasto V77 T BlueCool V-Series Variable Speed Chiller - 8,500 to 77,000 BTU's - 230V
Webasto V77 M BlueCool V-Series Variable Speed Chiller - 8,500 to 77,000 BTU's - 230V - R410A. The latest in high-comfort central chiller technology. This innovative system runs on variable-speed brushless DC twin rotary compressors, controlled with inverter technology not only during the starting phase but continuously throughout operation. Smooth and silent operation with no electrical starting peak. Compatible with MyTouch Control Display. 2-Year Warranty!
Reference: 2510596A
Available Online: 1
Ft. Lauderdale: 0
Miami: 1
Regular Price: $13,256.69
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on This Item*
Available for Store Pickup!
Freight Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Webasto BlueCool V-Series Marine Chiller Unit - 8,500 to 77,000 BTU's - 230V - R410A
The Webasto BlueCool V-Series chiller system brings innovation to the marine A/C industry with the latest technology for maximum performance in varying weather conditions.
The Webasto BlueCool V77 T (2510596A) is a high-performance variable speed marine chiller delivering 8,500 to 77,000 BTU of cooling and heating capacity. Featuring inverter-driven compressor technology, ultra-low starting current, and global voltage compatibility, it provides efficient, quiet, and reliable climate control for yachts and cruising vessels.
The new V-Series offers a unique new feature with the BlueCool Expert Tool connected via a single USB cable and a PC. On site servicing and remote assistance are now a breeze.
Part Number: WBCL1203002B
Replaces Part Number: WBCL1203002A

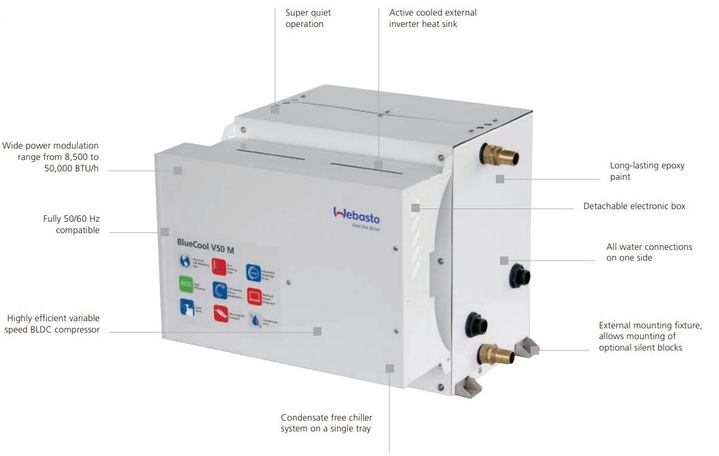

Key Features
• Variable speed inverter-driven compressor
• 8,500–77,000 BTU/hr cooling capacity
• 8,500–77,000 BTU/hr heating capacity
• Ultra-low 2.5 amp starting current
• Smooth, quiet operation with no startup peaks
• Compatible with 230V 50/60Hz and 240V 60Hz systems
• R410A refrigerant
• Integrated high- and low-pressure service ports
• USB diagnostic port with BlueCool Expert Tool compatibility
• Optional remote monitoring via BlueCool Connect
• Compatible with MyTouch display (WBCL151002C)
• Vimar bezel compatibility (Eikon, Eikon EVO, Plana, Biticino Axolute)
Webasto MyTouch Control Display Compatible
- The BlueCool MyTouch display is the new standard display for all BlueCool A/C Series:
- Full color, high resolution, interactive 2,4” touch screen
- Multiple customization options available (design, colors, language, photos, etc.)
- Protected: full access to system configuration parameters
- Compatible with Vimar Eikon, Eikon EVO, Plana, Bticino Axolute
Technical Specifications for 2510596A
| Part Number | 2510596A |
| Cooling Capacity (BTU/h) | 8,500 - 77,000 |
| Heating via reverse cycle integrated | Yes |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 / 60 |
| Current draw running (A) | 2.5 - 24 |
| Current draw Start (A) | 2.5 |
| Refrigerant charge R410A (g) | 892 + 770 |
| Chilled Water Connection (inch / mm) | 1 1/4 F BST / 32 |
| Seawater Connection (inch / mm) | 1 1/4 F BST / 32 |
| Weight (lbs / kg) | 231 / 105 |

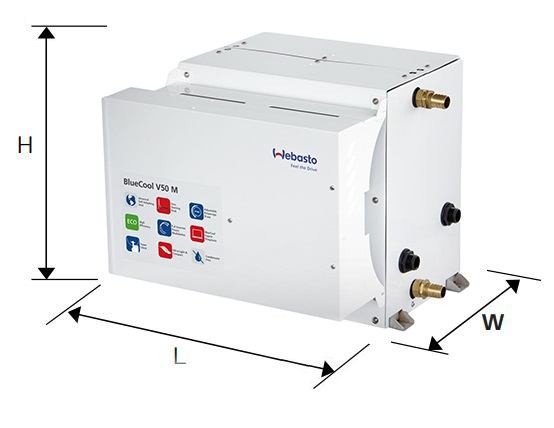

Dimensions
| Width (in / mm) | 29.5 / 750 |  |
| Length (in / mm) | 29.9 / 760 | |
| Height (in / mm) | 201 / 510 |
How It Works?
About Webasto - Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
