Webasto A9 BlueCool A-Series Compact Air Handler 230V - 50/60 Hz - 9,000 Btu's

Webasto A9 BlueCool A-Series Compact Air Handler 230V - 50/60 Hz - 9,000 Btu's

By buying this product you can collect up to Your cart will total 99 points that will be converted into a of $9.90 towards your next purchase! Must be to collect points.

Webasto A9 BlueCool A-Series Compact Air Handler 230V - 50/60 Hz - 9,000 Btu's

Customer ratings and reviews

Webasto A9 BlueCool A-Series Compact Air Handler - 9,000 BTUs. One or more air handlers(s) in each cabin are fitted to generate the required cooling capacities individually in each room. High performance with high cooling capacity, super silent with flexible vibration isolation mounts & larger ducts to reduce noise from air speed. Tested under tropical conditions. Voltage: 230V - 50/60 Hz. 2-Year Warranty.

Part Number: WBCL1209011A           Webasto

In Stock: 0

WBCL1209011A

$990.00

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

Webasto A9 BlueCool A-Series Compact Air Handler - 230V - 9,000 BTUs

Webasto A9 BlueCool A-Series Compact Air Handler - 9,000 Btu's

The central chiller unit is typically installed in the engine room, providing chilled water/glycol to all cabins via a water circuit. One or more air handler(s) in each cabin are fitted to generate the required cooling capacities individually in each room.

The Webasto A-Series meets the highest demands for comfort thanks to innovative features, such as vibration dampers, remote bleeder and the innovative Instant Drain Condensate Management System for smart management of condensate. The modular concept of the BlueCool A-series provides maximum flexibility and can easily be extended with accessory components such as the new Electric Heat Module (EHM) and the Flow Control Valve.

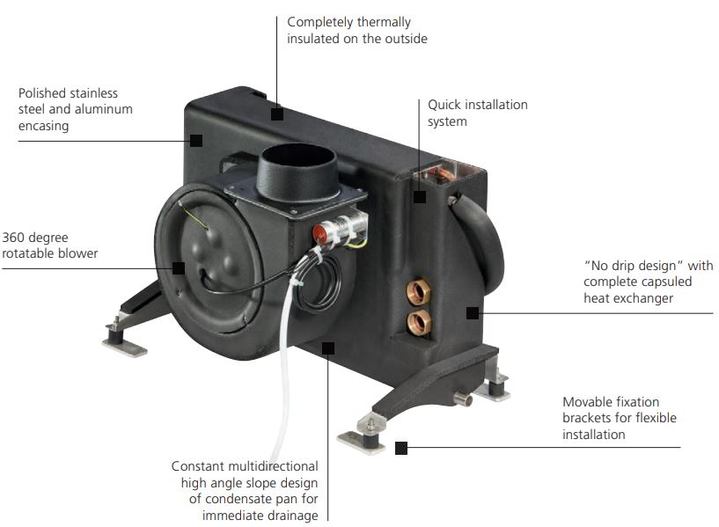

Key Features

  • New modular system with various options
  • Innovative Webasto Instant Drain Condensate Management
  • High quality stainless steel design
  • High performance with high cooling capacity and high air flow
  • Super Silent with flexible vibration isolation mounts & larger ducts to reduce noise from air speed
  • Oversized heat exchanger tested under tropical conditions

Compatible with MyTouch Control Display

Webasto MyTouch Control Display
  • The BlueCool MyTouch display is the new standard display for all BlueCool A/C Series:
  • Full color, high resolution, interactive 2,4” touch screen
  • Multiple customization options available (design, colors, language, photos, etc.)
  • Protected: full access to system configuration parameters
  • Compatible with Vimar Eikon, Eikon EVO, Plana, Bticino Axolute

Technical Specifications

Part NumberWBCL1209011A
Cooling Capacity (BTU/h)9,000
Voltage (V) / Frequency (Hz)230 - 50/60
Air Flow (m3/h - cfm)420 - 247
Blower Connection (inch / mm)5 / 125 (round)
Current draw running (A)0.6
Chilled Water Connection (inch)3/4
Minimum Chilled Water Flow (l/h)626
Condensate Drains Diameter (mm/in)16 / 0.63
Number of Condensate Drains2
Number of Blowers1
Weight (lbs / kg)18.7 / 9

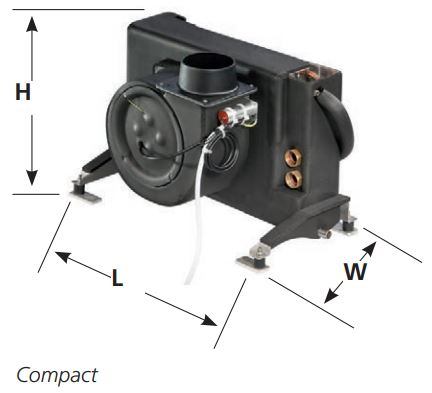

Dimensions

Width (in / mm)11.5 / 291
Webasto BlueCool A-Series Compact Air Handler
Lenght (in / mm)18.0 / 456
Height (in / mm)12.3 / 312

Product Video


Webasto


About Webasto - Founded in 1901, Webasto is a family-owned business based out of Stockdorf, Germany. With 12,000 people employed at more than 50 locations worldwide, Webasto is a global innovative systems partner to leading yacht manufacturers and boat builders for marine A/C and heating solutions. An outstanding network of production facilities and dealers guarantees high quality products, installation standards and services worldwide. Webasto has air conditioning systems suitable for any boat or yacht.
