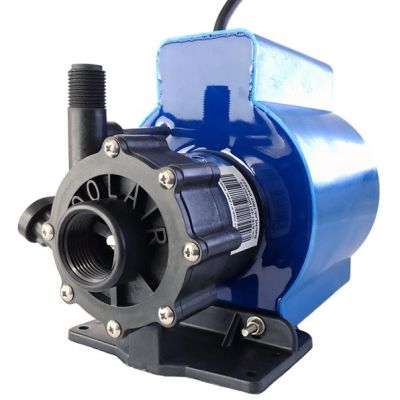

Webasto KoolAir SPM1000 Marine Pump - 115V

Webasto KoolAir SPM1000 Marine Pump - 115V

Webasto KoolAir SPM1000 Marine Pump - 115V

Customer ratings and reviews

The Webasto Koolair SPM1000-115V is a magnetically driven, fully submersible marine HVAC coolant pump that circulates seawater. The pump is epoxy encapsulated, which allows the SPM-1000 to run fully submerged in many liquids or in open air for complete moisture protection. Most commonly used on your boat for marine air conditioning while circulating seawater. 1000 GPH

Part Number:
5012087A
  Webasto Marine Pumps

5012087A

$519.00

Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 51 points that will be converted into a of $5.10 towards your next purchase! Must be to collect points.

More info

Webasto KoolAir SPM1000 Marine Pump - 115V
Webasto KoolAir SPM1000

The Webasto Koolair SPM1000-115V is a magnetically driven, fully submersible marine HVAC coolant pump that circulates seawater. The pump is epoxy encapsulated, which allows the SPM-1000 to run fully submerged in many liquids or in open air for complete moisture protection. Most commonly used on your boat for marine air conditioning while circulating seawater. The hardened Carbon bushing allows for extended run dry time without any damage to the pump head. SPM1000 is 115 Volt. 1 Phase. The cord is 56” in length and are U.L. LISTED 18/3 wire. The motors are rated as continuous duty.

Key Benefits

  • To withstand thermal overloads without failure, the pump has run dry protection. Finally when cooled, the pump will resume operating normally.
  • Polypropylene, Buna N and Ceramic Magnet make up the wet end materials exposed to liquids. When submerged, Epoxy, Stainless Steel, Polysulfone, and also the Cord will come in contact with the solution.
  • The inlet connection is a ¾” female pipe thread and the outlet is ½” male pipe thread.
  • Includes fully integrated, heavy duty marine base and also the original base in contrast to other pumps.
  • The motor is a 1 Phase 230V, 1/8 Horsepower motor, running on either 50 or 60 HZ. The pump is not self-priming and requires flooded suction.
  • Maximum internal pressure is 25 PSI and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.
  • The magnetically driven SPM1000-115 volt pump with no shaft seal is our core model. In open air or furthermore, fully submerged, the PM500 pumps as a result offer complete moisture protection due to being epoxy coated. When re-assembling the pump for service also make sure all “O” Rings are properly seated.
  • ISO 8846 Marine Ignition Protection.
  • NMMA, USCG and SAE J1171:2016

Performance Curve

Webasto KoolAir Performance Curve

Dimensions

Webasto KoolAir SPM1000

Technical Specifications

AttributeInformation
Part Number 5012087A
Weight 18 lbs
Maximum Flow

1000 GPH – 17.2 GPM (54.8 LPM)

Maximum Head

27 Feet of Head @ 11.7 PSI

Maximum Internal Pressure

25 PSI

Maximum Liquid Temperature

130° F (54° C)

Inlet

1″ FPT

Outlet

1/2″ MPT

Hertz

50/60 Hz

Voltage

115 Volt

Phase

Single Phase (1 PH)

Watts

216/207

Amps

1.6/0.9

Horsepower

1/8 HP

RPM

3450
